CodeReader8 (CR800)

CodeReader8 is the new product with Portable universal auto diagnostic code reader equipment that researched by the Codereader8 company in 2012 which has devoted itself to auto electronic research and development for many years, also, It is the high-tech enterprise. This product uses the latest ARM processor system frame. Swift response, a 3.2" full color LCD screen, Gorgeous vivid, Streamlining design, easy to use, humanized menu, three background subject choices according to the environment and the strength of the light.

It will automatically adjust the backlit, it is convenient for the users to use it in the car when the light is not strong. To support the function of OBDII&EOBD and the latest CAN protocol, also it can update freely forever (OBD protocol update, vehicles update, language update and Maintenance help).

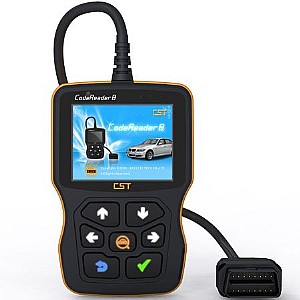

Outline of CodeReader8

A/B: UP/DOWN BUTTONs - Move cursor up or down for selection

C/D: LEFT/ RIGHT BUTTONs - Move cursor left or right for selection; Also turn page up or down when more than one page is displayed.

E: INFORMATION BUTTON - Trouble shooting information

F: RETURN BUTTON - Returns to previous menu

G: ENTER BUTTON - Confirms a selection (or action) from a menu list

H: Cable with OBD II CONNECTOR - Connects the CodeReader8 to the vehicle's Data Link Connector (DLC)

L: LED INDICATOR LAMP - Pending DTC; when it not sure or unknown DTC, the yellow indicator lamp will light up

Features:

A key type diagnostic function.

Read dynamic data flow

Hazards instructions

Ready condition test.

Query Freeze data.

Read the current fault code

Erase the fault code.

Oxygen sensor detection test

Specific monitoring system test ,vehicle monitoring

Read pending fault code

Read the vehicle-mounted system or components of the control.

Read vehicle information.

Read permanent fault code.

Fault code search function.

Test data playback.

Function test:

Vehicle fuel consumption test

Vehicle acceleration test.

All life free upgrade online.
