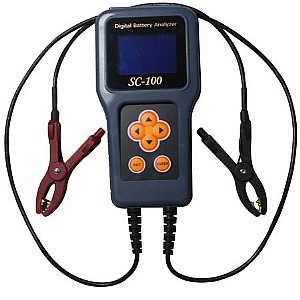

Do you know the vehicle battery is good or not? Please select Digital Battery Analyzer to help your vehicle for a good service.
sc100 functions
1:battery test
Apply to all kinds of standard such as: IEC, EN, DIN, JIS, etc.
2. Start status test
Start Voltage must be more than 9.6V
3. Charge test
Show charge status voltage as quickly
4. Max. Loading test
Show battery Voltage more than 12.8V
sc-100 car battery tester Features:
1.Can quickly and accurately test performance indicators of the battery, such as internal resistance, cold starting current.
2.Built-in multi-standard, can easily measure different types of batteries
3.Detect real-time status of voltage changes when the car starts
4.Monitor working status of charging system
5.Test discharged battery, and make sure the battery if charge needed
sc-100 Applications:
1. 12V car start battery
2. 12V charge system
3. Can detect the following Standard Battery
3.1 100-1700CCA
3.2 100-1000DIN
3.3 100-1000IEC
3.4 100-1700EN
3.5 JIS-JP
sc100 battery tester tool Technique parameter:
1.Power supply: supplied by the battery tested
2.Voltage Range: 9-18V
3.Display: LCD Screen
4.Work tempertaure: -18°C to 50°C
5.Cold start Current: 100CCA or above
