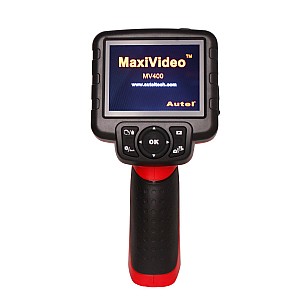

Autel Maxivideo MV400 Digital Videoscope with 5.5mm diameter imager head inspection camera
Autel Maxivideo MV400 not only features a 3.5" full
color LCD screen, auto focus and viewing capacity as close as 1" with
crystal clear output, but also offers the capability to stream digital
video directly to a PC. The Multipurpose Videoscope is an economical
solution to inspect machinery, facilities and infrastructure in the
safest, quickest and most cost-effective manner possible.
MV400 Features:
Records and plays back still images and video clips
3.5 " high resolution full color LCD display (320x240)
Easy-to-use, multi-language interface
Wide camera angle for images with 640x480 resolution
With optional removable Micro SD cards, saves images and videos to take with anywhere
On-screen horizontal/vertical reverse
5x digital zoom for increased viewing
Mini USB connector for uploading images and videos to a computer
Narrow probe diameter available in either 8.5mm(0.33") or 5.5mm(0.22") and fits most spark plug holes
White LED to illuminate the inspection area, with illumination control
Views objects as close as 1"
Oil and scratch resistant tempered glass lens
1M (39.4") semi-rigid, but flexible watertight shaft
Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use
Ergonomic and durable tool housing
One-year limited warranty
Autel Maxivideo MV400 specification:
Recommended use Indoor
Optimal viewing Distance
1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8"
to 12" (0.95cm to 30cm) with 5.5mm diameter imager
head Image capture JPG images (640x480) AVI videos (320 x 240)
Screen type display 3.5" TFT LCD
Display resolution 320 x 240
Power supply Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh)
Tested battery life 3-4 hours of continuous use
Dimensions 199 x 100 x 178mm (7.83" x 3.94" x 7.0")
Recording medium Micro SD card (Micro SD card is optional and not included)
Imager head 18.5mm (0.33") is standard and 5.5mm (0.22") is optional.
Waterproof Imager head and cable to 3m (10')
Additonal ports USB, video out (TV-out) port
Operating temp. Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)
Storage temp. -4°F to 158°F (-20°C to 70°C)
Video output RCA
TV out NTSC, PAL

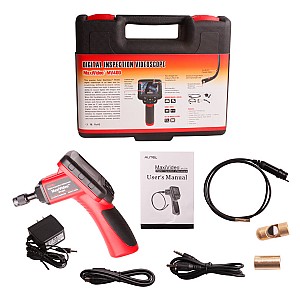

Package including:
1pc x Autel Maxivideo MV400
1pc x User’s manual
1pc x Protective carrying case
1pc x Imager head and cable
1pc x Charger
1pc x USB cable
1pc x Video out-cable ( TV-out cable)
