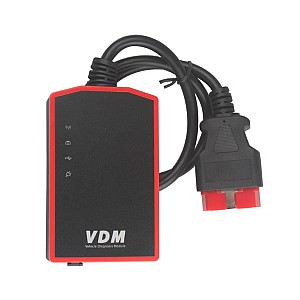

VDM UCANDAS V3.9 Wireless Automotive Diagnosis System
Top 9 Reasons To Get VDM Ucandas:
1. Software Version: 3.9 [You can download it directly From Official Website]
2. Support Multi-Languages

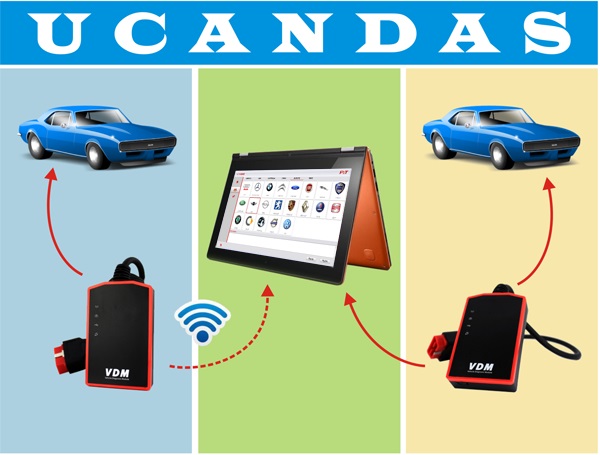

3. WIFI and USB Connection: The WIFI direct distance is less than 50M
4. Online Update: you can go to Website to update your device. After one year, you need pay about 80USD for each update
5. VDM UCANDAS can support new computer system: Windows XP, Windows 7, Windows 8. No WP8/Win8 RT
6. Our Customers feedback VDM UCANDAS better than Autocom
7. No need Activation or Register before using.
8. VDM UCANDAS Covers 47 Car Brands,9. English language version
support Indian cars. Other language version can not.
VDM UCANDAS for Android:
1.Supporting Andriod 4.0 or newer
2.Supporting screen resolution: above 720P
3.Supporting English language at the moment. As for multi-language.
4.Supporting read code, version information, clear code, live data.Special functions will be released later
5.More update coming soon.Notice:
1. Dealer Code: 000000 or 111111
2. Please Don't Use VDM UCANDAS on Windows XP SP2 System, Or Wifi Function Can't Work
3. Very Few type of car can do key programming function,such as HONDA,
and there is no supported car coverage list for this function
VDM UCANDAS Support Car List: European Car Models: Audi, Benz, BMW, Citroen,
Fiat, Ford EU, Jaguar, Lancia, LandRover, MINI, Opel, Peugeot, Porsche,
Renault, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, VW.
Asia Car Models: Acura,
Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan,
Perodua, Proton, Subaru, Suzuki, Toyota,Daihatsu,Daewoo,GM
Australia Car Models: Ford AU, Holden
USA Car Models: Chrysler, Ford, GM.,JEEP, SCION
China Car Models: Chery, Geely, GWM
VDM UCANDAS Support Language List:
English Global Version, Persian,Portuguese, Japanese, Czech,
Hungarian, Arabic, Russian Global Version, Finnish, Korean, Turkish,
German, French, Spanish, Italian, Simplified Chinese, Traditional
Chinese
(Besides English,you can have another one more languages at most, If you
want to add language for your VDM UCANDAS, please provide us serial
number and language you need)
VDM UCANDAS Supported Systems:
ME-Motor electronics, CDI-Common Rail Diesel Injection,
ETC-Electronic transmission control, ESM-Electronic selector module,
SBC-Sensotronic Brake Control, ESP-Electronic stability program,
BAS-Brake assist, Suspension, TPC-Tire pressure monitor, Airbag,
CGW-Central gateway, EIS-Electronic ignition switch, OCP-Overhead
control panel, UCP-Upper control panel, XALWA-Xenon headlamp,
HRA-Headlamp range control, ATA-Anti-theft alarm system, IC-Instrument
cluster, ASSYST-Active Service System, SCM-Steering column module,
EPS-Electrical power steering, PTS-Parktronic system, EPB-Electric
parking brake, COMAND/AUDIO, CD/DVD, TV tuner, CTEL-Cellular telephone,
DCM-Door control module, ESA driver-Electric seat adjustment driver,ESA
passenger-Electric seat adjustment passenger, AAC-Air conditioning,
WSS-Weight sensor system, SVMCM-Special vehicle multifunction control
module.
WIFI VDM UCANDAS Function List:
Quick Test, Read ECU Info., Read DTCs, Erase DTCs, Clear learning
value, Data Stream, Actuations, Read freeze frame data, Read/Write VIN,
Basic Reset, Control unit adaptations, Throttle adaptations, Air
bleeding, Level calibration, Theft alarm Reset, Key programming, Oil
change, Idle speed learning, Idle speed Adjustment, Ignition timing
adjustment, Camshaft timing control learning, Maintenance functions, ECU
Initial startup, ECU initialization

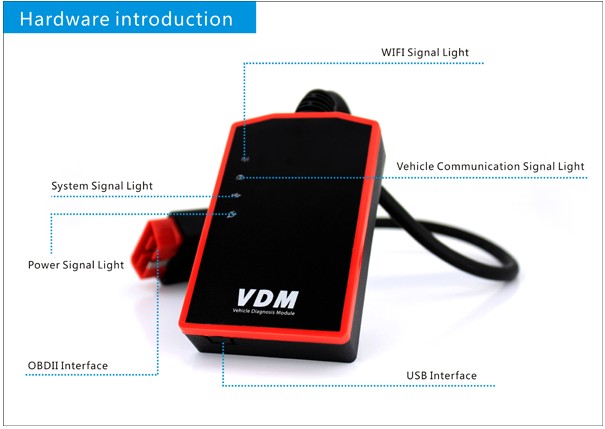

Hardware Introduction:
VDM UCANDAS Features
Supporting ISO 9141-2, K/L line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, ISO15765-4 protocols.
High-speed, medium speed and low speed CAN-BUS, Single CAN-BUS diagnosis protocols is supported.
Can check out the year and model of the vehicles automatically and quickly.
All inclusive software coverage - European, American, Asian and Australian prevalent vehicles.
OBDII diagnostic connector has a wide compatibility, which don’t need to replace other connector, during the testing.
Hardware architecture uses new design with multiple protection,
interference and stability. Built-in overvoltage protection module is
applied, in order to protect scanner and vehicle against accidental
damage during checking.
Can work stably in high and low temperature environment, and work well.
UCANDAS VDM Software Free Download:
Please visit ucandas official website download link:http://www.ucandas.com/download.html to download UCANDAS Software.
UCANDAS VDM Software Update:
Step 1: browse www.ucandas.com, click “Downloads”, and select
“Product Trials”, select the newest VDM UCANDAS update software, click
“Download”.
Step 2, after finish download “UCANDAS UI UPDATE Vxx”, install it and
launch it after finish installation. ucandas update tool is shown as
following icon.
Step 3, click the yellow icon “Ucandas”, and install the driver for your CP210x USB to UART Bridge device.
Step 4, connect UCANDAS VDM with computer and car.
Step 5, launch “Ucandas”, and click the third icon at the left side to read Hardware version and Software Version.
Step 6, click “update application” – the fourth icon at the left side, then a window pops up, click “ok” to update.
Step 7, register personal information by clicking the human head icon.
Step 8, select the language you get authorized at the upper right
corner, then download diagnostic program list with the language
installed. Important note: the language is car model software language,
not device menu language.
Step 9, return back to “Update tool”, click operating menu language to
reset the language you want, then all language is reset. Only when the
car model language matches menu language, the car model can be
displayed; otherwise it will have no car model after download.
How To Use UCANDAS:
Please connect VDM to the OBD diagnostic block of the car and the
power indicator will then illuminate. The fixed SSID of VDM is UCANDAS.
If
you fail to connect the device to Wi-Fi, please set it manually. The VDM
wireless icon will come on after you successfully connecting it to
Wi-Fi.

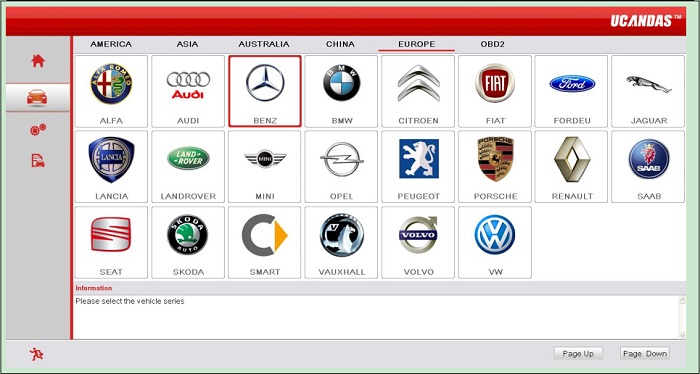

Then start UCANDAS software and click the “car diagnose” icon, as shown below:

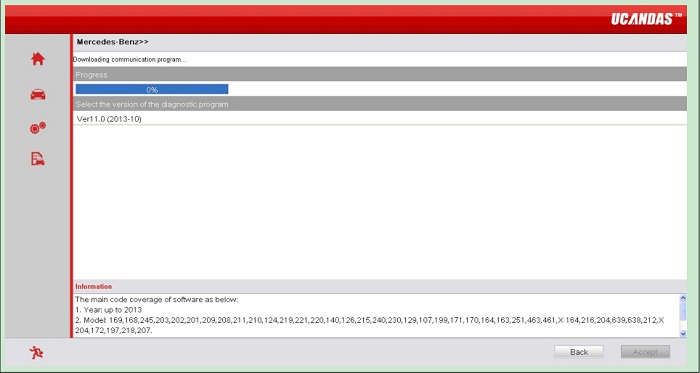

Click the corresponding auto icon, choose software version, and enter car diagnosis interface, as shown below:
VDM UCANDAS Reviews: D.Lackey: I saw
VDM UCANDAS advertised as better than autocom, it claims one-year free
update at official website, and works with newest cars up to 2014.
chanasims: I tested UCANDAS VDM successfully many car
models after 2000 year, like 2012 honda cr-v, Jeep, Dodge, a part of
cars up to 2014 year. I had problem with Renault Fluence, Saab 93 and
Ford, I thought VDM can’t cover these cars, later I learned they are
before 2000 year, VDM can’t cover.
hish7am:I installed VDM UCANDAS on Win7 successfully
(uobdii.com claims Windows XP, Windows 7, Windows 8. No WP8/Win8 RT
support), easy to install, no need to activate. WIFI connection and
Bluetooth supported.
Eve Chenevert: I spent about 209USD, got one, it
arrived this week, it came with main unit with OBDII cable, software
driver and USB cable, package is very simple compared with Launch X431
and Autel scanner which packed with many adapters.
VDM UCANDAS Customers Feedback:
I have ucandas they recently roll out the 2015 update for GM and it’s
very up to date on Ford. I scanned 2014-2015 Fords before with it. Its
somewhat ok on SRS.
I have had success with Chrysler 300cc when snap on tool diag car as dpf
problem when infact ucandas diag correct as egr, also merc slk airbag
it diagnose car good
I got ucandas when first came out and it used to diag nissan very good
until i did firmware update, I even have the first disc they sent with
tool before they had the online register service.
It’s not a bad scanner…They use to listen to me and take my input.I love
the wireless scan..and since they actually listen to me and been adding
seat cal for most of the car its gotten better.
They are very outdated on Nissan thought…up to 2011…I have my eye on the GreenDS GDS+ 3, updates for Autel is a B****.
VDM UCANDAS Specifications:
MCU: ARM7 processor, 66MHz
Input Voltage: DC 8-18V
Communication Mode: USB and WIFI
Storage Temperature: -30 to 120 C(-22 to 248 F), Relative Humidity: <90%
Operating Temperature: -30 to 120 C(-22 to 248 F), Relative Humidity: <90%

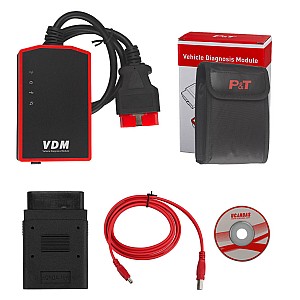

VDM UCANDAS Package List:
1pc x VDM Main unit with OBDII Cable
1pc x USB Cable
1pc x Carrying Bag
1pc x Software CD
1pc x Honda Adapter
