More information and manual. click here to download PDF file

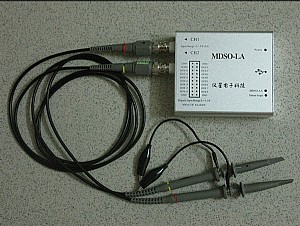

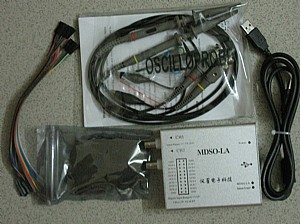

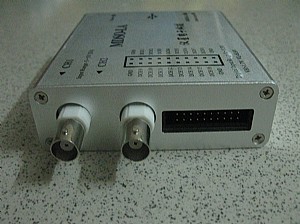

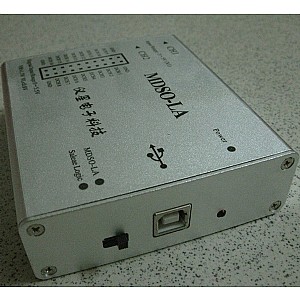

MDSO-LA dual-channel digital oscilloscope, with "low-cost, high-performance" as the design goals. well-designed bandwidth of 20M, 48M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of two-channel virtual
oscilloscope, spectrum analyzer, data recorder and 24M logic analyzer. At the same time, the device supports Saleae Logic logic analyzer software, support for SPI, IIC,UART, USB 10 protocol analysis.
Oscilloscope / spectrum analyzer:
Bandwidth 20M
Sample 48M
Channel 2
Input voltage range [-50V,+50V](With probe X10)
Memory depth 1M*2
AD Bit 8
Software trigger rising, falling, rising / falling, differential, rising /
falling+differential
