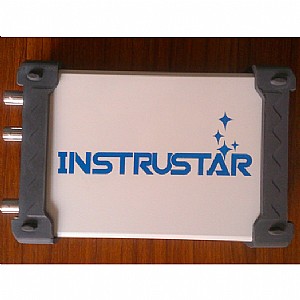

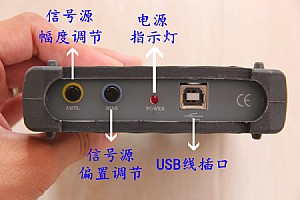

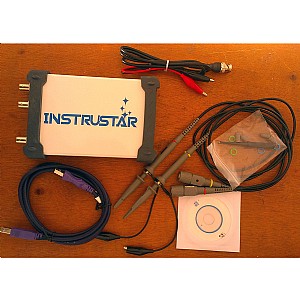

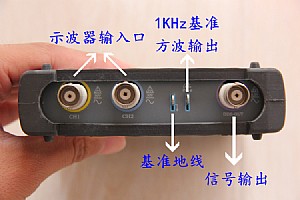

ISDS205B 2CH Digital Oscilloscope 20M Virtual oscilloscope Spectrum Analyzer Data Recorder DDS Sweep
Introduction:
ISDS205B dual-channel digital oscilloscope, with "low-cost,
high-performance" as the design goals. well-designed bandwidth of 20M,
48M sampling rate, 2 channels, alternating support X, Y and XY
alternating pattern of two-channel virtual oscilloscope, spectrum
analyzer, data recorder. Meanwhile, it support DDS and Sweep function.
DDS support 5 kinds of waveform output, Sine wave can output up to 20M.
The device communicate with the PC via high speed USB2.0.
Specifications:
| Digital oscilloscope
|
| Channels
|
2
|
| Impedance
|
1MΩ 25pF
|
| Coupling
|
AC/DC
|
| Vertical resolution
|
8Bit
|
| Gain range
|
-6V ~ 6V（probe X1）
-60V ~ 60V（probe X10）
|
| Vertical accuracy
|
±3%
|
| Timebase range
|
1ns-20s
|
| Input Protection
|
Diode，50Vpk
|
| Autoset
|
Yes(10Hz to 20MHz)
|
| Trigger Mode
|
Auto、Normal and Signal
|
| Trigger Type
|
No、Rising edge、Falling edge、
Rising edge or Falling edge
|
| Trigger level
|
Yes
|
| Trigger Source
|
CH1, CH2
|
| Buffer Size
|
1MB/CH
|
| Bandwidth
|
20MHz
|
| Max sample
|
48MS/s
|
| Vertical mode
|
CH1, CH2, ADD, SUB, MUL
|
| Display Mode
|
X、Y-T和X-Y
|
| measurements
|
Yes
|
| Wave save
|
Osc(Private)、Excel and Bmp
|
| Spectrum analyzers
|
| Channels
|
2
|
| Bandwidth
|
20MHz
|
| Algorithm
|
FFT(18 windows)、correlation、power spectrum
|
| FFT points
|
8-1048576/CHN
|
| FFT measure
|
Harmonic(1-7)、SNR、SINAD、ENOB、THD、SFDR
|
| Filter processing
|
FIR filter supports arbitrary range of frequency
sampling method , and Rectangle, bartlett, triangular, cosine,
hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey,
Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand
dolph_chebyshev, window method design.
IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design
|
| Data recorder
|
| Channel
|
2
|
| Impedance
|
1MΩ 25pF
|
| Coupling
|
AC/DC
|
| Vertical resolution
|
8Bit
|
| Gain range
|
-6V ~ 6V（probe X1）
-60V ~ 60V（probe X10）
|
| Sample
|
1 channel : 1K~24M Hz
2 channel : 1K~16M Hz
|
| Save File
|
The maximum 4G, recording time associated with the sampling rate
|
| DDS
|
| Wave
|
Sine, Square(Duty circle variable),Triangle,Up Sawtooth,Down Sawtooth
|
| Amplitude
|
≥9Vp-p(no load)
|
| Impedance
|
200Ω±10%
|
| Offset
|
±2.5V
|
| Frequency range
|
1Hz ~ 20MHz(Sine), 1Hz ~ 2MHz(Others)
|
| Frequency resolution
|
1Hz
|
| Frequency steadiness
|
±1×10-3
|
| Frequency precision
|
±5×10-3
|
| Triangular wave linearity
|
≥98% (1Hz~10kHz)
|
| Sine wave distortion
|
≤0.8% (1kHz)
|
| Square wave rising/falling time
|
≤100ns
|
| Square wave duty circle
|
1%~99%
|
| SWEEP
|
| Sweep range
|
Fs到 Fe
|
| Sweep time range
|
0.1 ~10 s
|
| Amplitude
|
0.5Vp-p ~ 10Vp-p
|
| Sweep
|
| Sweep Style
|
Linear Sweep、Log Sweep
|
| Linear Sweep Range
|
1Hz-20MHz, Min 1Hz step
|
| Log Sweep Range
|
1Hz-10MHz, 1,10,100....Logarithmic step
|
