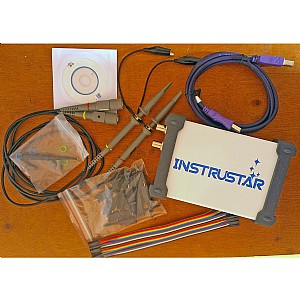

ISDS205C 2CH Digital Oscilloscope 20M Virtual oscilloscope Spectrum/Logic Analyzer Data Recorder SPI IIC UART
Introduction:
ISDS205C dual-channel digital oscilloscope, with "low-cost,
high-performance" as the design goals. well-designed bandwidth of 20M,
48M sampling rate, 2 channels, alternating support X, Y and XY
alternating pattern of two-channel virtual oscilloscope, spectrum
analyzer, data recorder and logic analyzer. Logic analyzer support our
Logic software and Saleae Logic 2 kinds of software, Saleae Logic
supports SPI, IIC, UART, etc. 17 kinds protocol analysis. The device
communicate with the PC via high speed USB2.0.
Specifications:
|
Digital oscilloscope
|
|
Channels
|
2
|
|
Impedance
|
1MΩ 25pF
|
|
Coupling
|
AC/DC
|
|
Vertical resolution
|
8Bit
|
|
Gain range
|
-6V ~ 6V（probe X1）
-60V ~ 60V（probe X10）
|
|
Vertical accuracy
|
±3%
|
|
Timebase range
|
1ns-20s
|
|
Input Protection
|
Diode，50Vpk
|
|
Autoset
|
Yes(10Hz to 20MHz)
|
|
Trigger Mode
|
Auto、Normal and Signal
|
|
Trigger Type
|
No、Rising edge、Falling edge、
Rising edge or Falling edge
|
|
Trigger level
|
Yes
|
|
Trigger Source
|
CH1, CH2
|
|
Buffer Size
|
1MB/CH
|
|
Bandwidth
|
20MHz
|
|
Max sample
|
48MS/s
|
|
Vertical mode
|
CH1, CH2, ADD, SUB, MUL
|
|
Display Mode
|
X、Y-T和X-Y
|
|
measurements
|
Yes
|
|
Wave save
|
Osc(Private)、Excel and Bmp
|
|
Spectrum analyzers
|
|
Channels
|
2
|
|
Bandwidth
|
20MHz
|
|
Algorithm
|
FFT(18 windows)、correlation、power spectrum
|
|
FFT points
|
8-1048576/CHN
|
|
FFT measure
|
Harmonic(1-7)、SNR、SINAD、ENOB、THD、SFDR
|
|
Filter processing
|
FIR filter supports arbitrary range of frequency
sampling method , and Rectangle, bartlett, triangular, cosine,
hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey,
Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand
dolph_chebyshev, window method design.
IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design
|
|
Data recorder
|
|
Channel
|
2
|
|
Impedance
|
1MΩ 25pF
|
|
Coupling
|
AC/DC
|
|
Vertical resolution
|
8Bit
|
|
Gain range
|
-6V ~ 6V（probe X1）
-60V ~ 60V（probe X10）
|
|
Sample
|
1 channel : 1K~24M Hz
2 channel : 1K~16M Hz
|
|
Save File
|
The maximum 4G, recording time associated with the sampling rate
|
|
Logic Analyzer
|
|
Channel
|
16
|
|
Sample
|
8 channel: 250K~24M Hz
16 channel: 250K~16M Hz
|
|
Sample points
|
1M-2GB
|
|
Saleae Logic Logic Analyzer
|
|
Channel
|
8
|
|
Sample
|
25K~24M Hz
|
|
Protocol Analyzer
|
Atmel SWI、BiSS
C、SPI、I2C、CAN、UART、I2S/PCM、DMX-512、JTAG、LIN、Manchester、1-WIRE、UNI/O、
Simple Parallel、MDIO、USB1.1、PS/2 Keyboard/Mouse
|
|
Sample points
|
1MB~10TB
|
