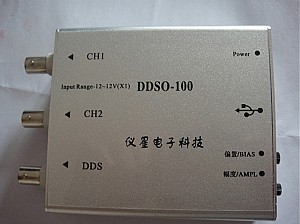

DDSO-100/HDSO-100 dual-channel digital oscilloscope, with "low-cost,
high-performance" as the design goals. well-designed bandwidth of 40M, 100M
sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of
two-channel virtual oscilloscope, spectrum analyzer . Meanwhile, DDSO-100 device
has a the DDS function, supports five kinds of waveform output. Sine wave can
output up to 20M. The device communicate with the PC via high speed USB2.0.
2.Feature Deion

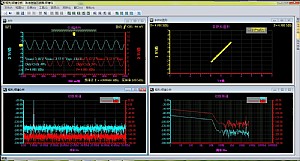

Digital oscilloscope
Channels 2
Impedance 1MΩ 25pF
Coupling DC
Vertical resolution 8Bit
Gain range 10mV-12V（probe X1）
DC accuracy ±3%
Timebase range 1ns-20s
Input Protection Diode，120Vpk
Autoset Yes(1Hz to 40MHz)
TriggerMode Auto、Normal and Signal
Trigger Type No、Rising edge、Falling edge and edge
Trigger level Yes
Trigger Source CH1, CH2
Buffer Size 1KB-256KB/CH
Bandwidth DC to 40MHz
Max sample 100MS/s
Vertical mode CH1, CH2, ADD, SUB, MUL
DisplayMode X、Y-T 和 X-Y
measurements Yes
Wave save Osc(Private)、Excel and Bmp

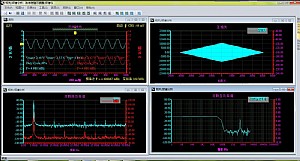

Spectrum analyzers
Channels 2
Bandwidth 40MHz
Algorithm FFT(18 windows)、correlation、power spectrum
InstruStar Electronic Technology 2
FFT points 8-1048576/CHN
Filter processing
FIR filter supports arbitrary range of frequency
sampling method , and Rectangle, bartlett, triangular,
cosine, hanning, bartlett_hanning, hamming, blackman,
blackman_Harris, tukey, Nuttall, FlatTop, Bohman,
Parzen, Lanczos, kaiser, gaussand dolph_chebyshev,
window method design.
IIR filter support "Butterworth", "Chebyshev I",
"Chebyshev II", "Elliptic" type of filter design

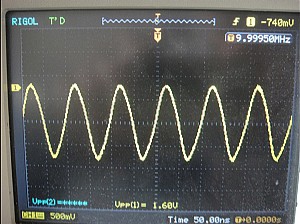

DDS(Only DDSO-100)
Wave Sine, Square（Duty circle variable）, Trianglar
Amplitude ≥9Vp-p(no load)
Impedance 200Ω±10%
Offset ±2.5V
Frequency range 1Hz ~ 20MHz(Sine), 1Hz ~ 2MHz(Others)
Frequency resolution 1Hz
Frequency steadiness ±1×10-3
Frequency precision ±5×10-3
Triangular wave linearity ≥98% (1Hz~10kHz)
Sine wave distortion ≤0.8% (1kHz)

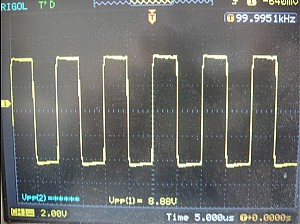

Square wave rising/falling time ≤100ns
Square wave duty circle 1%~99%
SWEEP
Sweep range Fs 到 Fe
Sweep time range 0.1 ~10 s
Amplitude 0.5Vp-p ~ 10Vp-p
Note: The oscilloscope factory calibration, if you are not satisfied with the
measurements, canmanual calibration, the specific reference oscilloscope
instructions.
