Scania VCI-3 VCI3 Scanner Wifi Wireless Diagnostic Tool for Scania
Best Quality V2.43 Scania VCI-3 VCI3 SDP3 Wifi Diagnostic Tool with Full Chip, click here
V2.43 Scania VCI-3 VCI3 Scanner Wifi Diagnostic Tool Multi-language Support Win7/Win10,click here
1. Latest Version: V2.43
After instal, pls supply
Sdp3 HWID for activation. (Including one time free activation only)
2. Support All Scania Trucks, Buses and other Heavy Vehicles or Heavy Duty Engines Made by Scania
3. Wifi Available

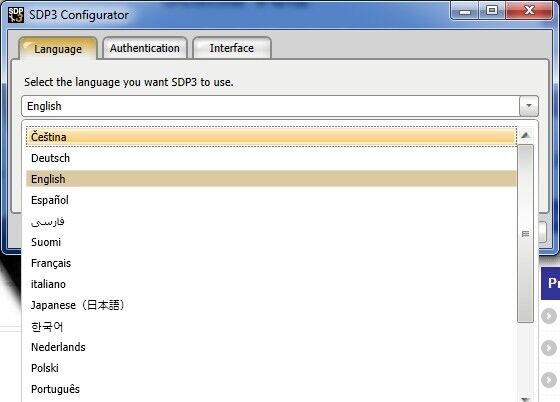

4. Support Languages:English, German, Spanish, French, Japanese, Dutch,
Polish, Portuguese, Swedish, Norwegian, Suomi, Turkish, Italian, Czech,
Russian, Chinese
Notice:
The adapter does not work with trucks and engines manufactured before 2004

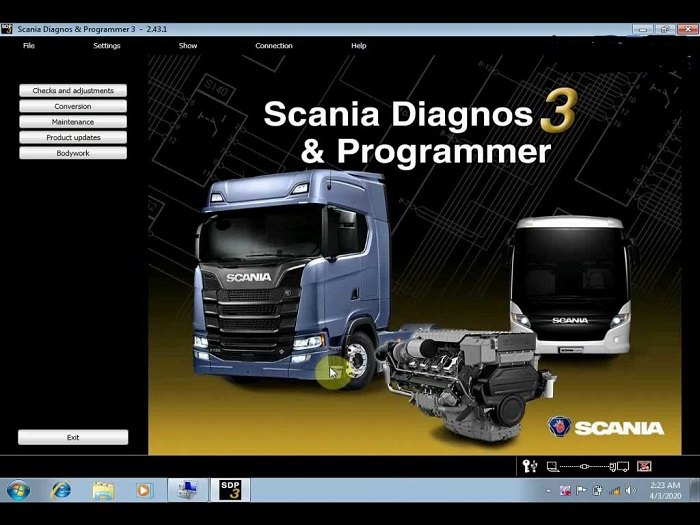

Scania VCI3 SDP3 V2.43 Software Display:
SDP3 Support Operating System:
Win7 sp1 ultimate edition 32 or 64
Win7 pro sp1 just 32 bit
Win10 pro
Scania SDP3 2.43 Update: Check and adjustements
Conversion
Maintenance
Campaign
Bodywork
Fault Codes
Fault Reporting
Programming of Control units
Need Netframework 4.5 installed on system.
In order to install SDP3, administrator rights are required.
UPDATE ECA Please also see Scania Ti 04-14 02 16 for more information about background and regarding the update process.

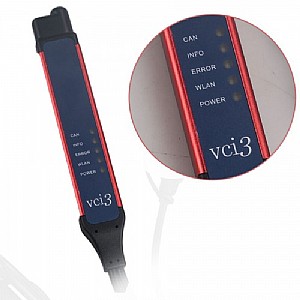

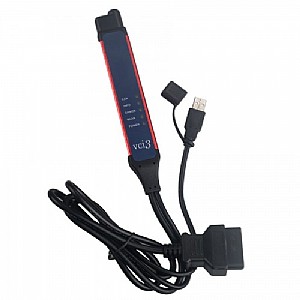

SCANIA VCI3 Deion:
1. Scania VCI3 is designed to support all Scania diagnostic systems
based on CAN network, it's a extremely fast yet very compact diagnostic
tool.
2. One of the most interesting new features that can be found in
Scania VCI3 is a Wifi wireless connection (also there is a USB connector
for wired connection).
3. From now you can work without wired connection to your truck,
just forget these problems like damaged data cables and other
disadvantages of wired connections.
4. Software support for Scania VCI3 appeared in Scania SDP3 2.18
version so if you want to use this tool you need this version of SDP3 or
later versions of this software.
5. The device is designed for full service trucks, buses and other
heavy vehicles, which produces the corporation SCANIA. Adapter works in
conjunction with software SDP-3.
6. The adapter does not work with trucks and engines manufactured before 2004.
7. The main feature of VCI-3 - Work through a high-speed WI-FI connection. Also in the device has a USB port.
SCANIA VCI3 Features:
1. WLAN version 802.11b/g
2. Encryption protocols: WPA2/WPA/WEP128/WEP64
3. USB 2.0 (compatible with USB 1.1)
4. Lightweight aluminum housing with IP67 protection
5. Polyurethane cables for extreme conditions.
6. Operating voltage CAN BUS (7 - 40V DC)
SOPS EDITOR INCLUDED: Download with SDP3 from truck SOPS export file;
Decrypt SOPS export file to XML format;
Edit XML file with any XML editor;
Modify more than 300 parameters: like AdBlue, EGR, NOx Control, see whole list;
Encrypt XML file to SOPS import file;
Upload SOPS import file to truck with SDP3;
Scania XCOM - is a diagnostic tool to read, save and modify ECU data
such as trouble codes, parameters, statistic data etc. VCI2/VCI3
interface is used to connect to ECU via CAN protocol.
Supported modification of ECU data of the following types:
EMS – Engine management system.
GMS – Gearbox management system.
RET – Retarder system.
AWD – All wheel drive system.
CLS – Clutch Control.
EEC – Exhaust Emission Control.
COO (COO7) – Coordinator.
BWS (BCI1) – Bodywork system.
Supported resolving trouble codes to text deion for the following types:
EMS (S6, S7, S8).
GMS (OPC4, OPC5).
RET (RET1, RET2).
AWD (AWD1).
EEC (SCR1, EEC3).
COO (COO6, COO7).
HMS (HMS1).
Some interesting options:
AdBlue ON/OFF.
EGR ON/OFF.
Chassis ID/VIN Change.
Immobilizer ON/OFF.
Truck Power INCREASE.
ECU Recovery.
ECU Reset.
ECU Unlock.
Scania diagnostic software works with VCI 3 interface:
Highest level access
Internal Scania
Industry & Marine
Authorized Scania Workshops
Bodybuilder

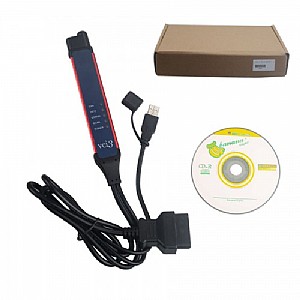

SCANIA VCI3 Package Included:
1pc x Scania VCI 3 adapter1pc x SDP3 CD
