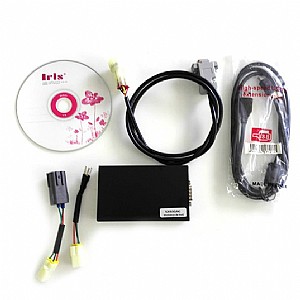

The Latest Kawasaki Motorcycle Tester for OBD Tool

1. What is the minimum system requirement to run the software ?

All computers running Windows (any version) and having a USB
port will do. The minimum screen resolution is 1024x600.

2. How to use the tool ?

- Have the ignition key in OFF position.
- Connect the OBD tool connector to the KDS diagnostic plug of
the bike, and connect the USB plug to your Windows PC.
- Start the OBD tool application.
- Select neutral, turn ignition On and have the engine stop switch
in RUN position.
- Press the "Connect" button. The engine parameters must be
shown on the screen.
- Start the engine if you wish to inspect parameters with the
engine running.

3. Some parameters disappear after connection, why ?

This means your vehicle does not have such kind of sensor, or that
sensor data is not available through the OBD interface on your bike.

4. What is the maximum measuring time ?

The measuring time is unlimited (depends only on available disk
space). The OBD Tool automatically starts the recording when you
connect to the ECM.
