OBDSTAR X300 PRO3 Key Master English Version with Standard Configuration

Toyota G Chip and H Chip (American type and Middle East) ALL Key Lost can be updated in X300 Pro3 and X300DP now!

OBDSTAR X300 PRO3 now covers all functions of OBDSTAR F108+, please update your device to latest version to have this function.

Top 5 Reasons to Buy OBDSTAR X300 PRO3 Key Master:

1. Supports program Auto Keys and Smart Keys for Mazda/Ford.
2. All operations completed are required without password .
3. Supports the latest version of Mazda CX-3,CX-5,Mazda 2/3/6, no need Pin code anymore
4. Supports odometer correction for part of Mazda/Ford/Jaguar/Land Rover
5. Free Update Online for 1 year on Official Website, 115usd/year after one year

Notice:
1. Dealer Code: 860755B1
2. This is Key Master Standard Configuration: Immobiliser + Odometer adjustment +EEPROM/PIC+OBDII
Now can pay to get Full Package Configuration Service, just need to provide serial number to our customer service after you pay.
Full Configuration including: Standard Configuration Plus EPB+Oil Service/Reset+Battery Matching Functions
3. OBDSTAR X300 PRO3 Language Available: English
4. Can not support VW 4th and VW 5th IMMO

OBDSTAR X300 PRO3 Odometer Reset Update Mercedes-Benz:



OBDSTAR X300DP/X300 PRO3 Upgrade Announcement of February 2018

Cluster Calibrate
BMW:
Increased in FEM/BDC module the cluster calibrate, reading fault code, clear fault
code, energize without key functions.

IMMO
1. Increased following functions in Peugeot/Citroen/DS BSI system:
<1>CONTINENTAL BSI-Q0X: EEPROM Backup, EEPROM Recover, FLASH Backup.
<2>JC BSI04EV-K0X: EEPROM Backup, EEPROM Recover, FLASH Backup.
<3>JC BSI2004-H0X: EEPROM Backup, EEPROM Recover, FLASH Backup.
<4>JC BSI04EV2-KEX: EEPROM Backup, EEPROM Recover, FLASH Backup.
<5>SIEMENS BSI-S0X: EEPROM Backup, EEPROM Recover, FLASH Backup.
<6>SIEMENS BSI-E0X/BSI-F0X: EEPROM Backup, EEPROM Recover.
<7>VALEO BSI-N0X: EEPROM Backup, EEPROM Recover, FLASH Backup.
<8>VALEO BSIEV-X0X: EEPROM Backup, EEPROM Recover, FLASH Backup.
<9>VALEO BSI2004-P0X: EEPROM Backup, EEPROM Recover, FLASH Backup.

2. Roewe
Increased MGZS Key programming.
Increased Roewe 550 pincode reading.
Increased MG6 pincode reading.

3. Porsche increased key programming for following models:
Boxter(2005-2011)
Cayman(2005-2011)
997(2005-2010)
911(2005-2010)

4. Great Wall
Increased WEY VV5C/VV5S、VV7C/VV7S smart key system.

5. Renault
Increased IMMO system 7, type 8.

6. BMW
Increased in FEM/BDC module the ECU change function, engine ISN code reading,
energize without key, all keys lost programming.

Special Function
Tire Pressure:
1. Increased Benz-Mercedes tire pressure monitoring.
2. Increased Renault tire pressure monitoring system.
3. Increased Volvo tire pressure monitoring system.

Software Free Upgrade on Jan 27th, 2018! (for Key Master & Key Master DP)

Free Pin code reading for Peugeot/Citroen/DS All Key Lost
●ECU model Auto Identity     ●Pin code reading

Supported list:
SIEMENS D76F0018+95160 K LINE(BSI-E0X-00/BSI-F0X-00)
SIEMENS 1L00M+95128-95256CAN(BSI-S0X-00)
CONTINENTAL SC667050+95256 CAN(BSI-Q0X-00)
JC easyCAN4+29LV400BB+95128 CAN (BSI2004-H0X)
JC easyCAN4F1M-32+95128 CAN (BSI04EV-K0X)
JC SPC560B60+95128 CAN (BSI04EV2-KEX)
VALEO 2M48H+24C128 CAN (BSIEV-X0X-00)
VALEO 4L00M+95128-25128CAN(BSI2004-P0X-00)
VALEO SC667152+95256 CAN (BSI-N0X)

Software Upgrade on Nov 17th, 2017! (for Key Master & Key Master DP)

VW/AUDI
IMMO/Cluster Calibrate
VW/(NEC+24C64)2014.6- by OBD2
AUDI/(NEC+24C64)2014.6- by OBD2
SEAT/(NEC+24C64)2014.6- by OBD2
SKODA/(NEC+24C64)2014.6- by OBD2

FORD
Pincode Free Matching
for New Mondeo/Edge/Taurus/Mustang/F150 2015- Models
Edge 2016+
F150 2015
Galaxy 2015+
Mondeo 2015+
Mustang 2015+
Ranger 2016+

Peugeot/Citroen
All-lost Pincode Reading by OBD2
Cluster Calibrate by OBD2

Hyundai
47 chip Pincode Reading

Benz-Mercedes
Cluster Calibrate for 205/222 with blocker

BMW
IMMO for FEM/BDC

OBDSTAR X300 PRO3 Key Master Newly Updated Odometer Reset Function: (Update Announcement on May 27th)

1. K line odometer reset Model(M2) for AUDI/VW/SKODA/SEAT are added.
2. VW Golf 7 models are added.
3. Chassis W169 for BENZ A serial by OBD are added.
4. Chassis W245 for BENZ B serial by OBD are added.
5. Chassis W204 for BENZ C serial by OBD are added.
6. Chassis W209 for BENZ CLK serial by OBD are added.
7. Chassis W207(E-COUPE) for BENZ CLK serial by OBD are added.
8. Chassis W218 for BENZ CLS serial by OBD are added.
9. Chassis W212 for BENZ E serial by OBD are added.
10. Chassis X204 for BENZ GLK serial by OBD are added.
11. Chassis R197 for BENZ SLC serial by OBD are added.

OBDSTAR X300 PRO3 VS OBDSTAR DP in the term of function:
PS: Both OBDSTAR DP and OBDSTAR X300 PRO3 are available with standard package and full package.
1. Basic diagnostic system for Engine, Transmission ABS, airbag:
   -OBDSTAR DP Standard Package is ok
2. Full system diagnosis:
   -So far OBDSTAR DP Full Package can perform full system diagnosis on only Japanese and South Korea vehicles, other vehicles will be added in 2017.
3. OBDSTAR X300 PRO3 does not include diagnostic system yet.

OBDSTAR X300 PRO3 Advantages:

The main unit system adopts ARM high speed chip to keep it running fast, stable and anti-jamming.
Upgrade via the SD card at any moment.
Modern design and high-definition screen realize the integration of automotive industry and electronic information technologies and make auto diagnosis and key programming easier, practical and economical. Integrity structure design makes it crack resistance, shock resistance and durable.
Industrial design ensures the tool works stably under the tough environment, such as high and low temperatures.

OBDSTAR X300 PRO3 Features:

1. New keys programming;
2. Key reading from the immobilizer’s memory;
3. New immobilizer programming;
4. New ECU programming;
5. New mechanical key number programming;
6. Vehicle Identification number programming;
7. ECU reset & immobilizer reset;
8. Easy to operate by the guided menu programming;
9. New remote programming;
10. PINCODE reading;
11. Odometer adjustment (Via obd);
12. EEPROM/PIC Chip reading and immobiliser initialization ;
13. With full and strong database for the most important vehicle makes;

OBDSTAR X300 PRO3 Durability:

1. Integrity structure design makes it come with good crack resistance, shock resistance and durability.
2. Industrial design ensures the tool works stably under the tough environment, such as high and low temperatures.

OBDSTAR X300 PRO3 Car List:

BAIC, BENZ, BESTURN, BMW, BRILLIANE, BYD, CHANGAN, CHANGHE, CHERY, CHRYSLER(CHRYSLER/DODGE/JEEP), DFFENGSHEN, DFPV, FAW, FIAT, FORD/LINCOLN, GEELY/HUAPU/SQYL, GM(BUICK/CADILLAC/CHEVROLET/GMC/HUMMER), GREATWALL, HAFEI, HAWTAI, HIMIKO, HNMAZDA, HONDA/ACURA, HONGQI, HYUNDAI, ISUZU, JAC, JAGUAR, KIA, LANDROVER, LIEBAO, LIFAN, LUFENG, LUXGEN, MASERATI, MAZDA, MITSUBISHI, NISSAN/INFINITI, OPEL, PEUGEOT/CITROEN, PORSCHE, PROTON, QQROS, RENAULT, ROEWE/MG, SGMW, SMART, SSANGYONG, SUBARU, SUZUKI, TJFAW, TOYOTA/LEXUS, VW/AUDI/SKODA/SEAT, YOUNGLOTUS, ZZMAZDA, ZZNISSAN, ZOTYE etc.

OBDSTAR X300 Pro 3 Car Key Programmer X-300 pro3 Key Master

X-300 pro3 Key Master will covers Skp-900, OBDSTAR X100 Pro and X300 Pro function, which can support Immobilizer, Odometer Adjust. EEprom/PIC, OBDII, EPB, Oil/Service reset and Battery Matching...

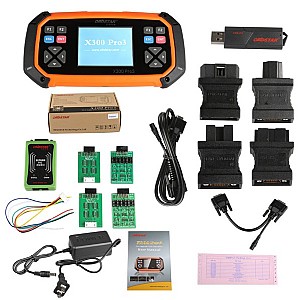

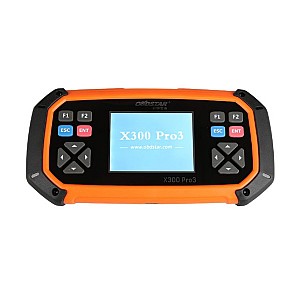

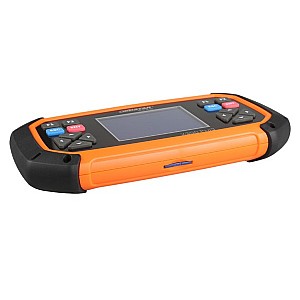

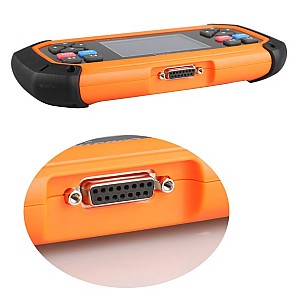

OBDSTAR X300 PRO3  Main Unit and Accessories(Picture shown as below):

OBDSTAR X300 PRO3 X-300 Feedback:

OBDSTAR X300 Pro3 Key Master feedback on key programming
It can do key programming for PSA ford fiat VAG.
Toyota 4Runner (2006) ok
Lexus RX400H (2005) ok
For Honda it’s great edit vin etc
For Nissan smart keys it’s awesome
For Toyota ck100 all keys lost
Works on Hyundai and Kia
Did Kia Ria 2014 with I4D60…. Cannot read pin but programmed key when we had pin.
Did Hyundai i10 2012. Read Pin and programmed 7936 (ID46). Quick and easy.
Do key for great wall Volex c30 2012 read pin code program key ok
K13 worked perfect Insignia 2011 read security code +program keys OK
Just make key for ford focus 2011 on 80bit transponder 10 min job done

OBDSTAR X300 PRO3 Feedback on PIC function and workable car models:
 The PIC adapter working with OBDSTAR X300 PRO3 is to read write CPU data on a part of car computer. PIC adapter workable car models (05-26-2016 update):
Initialize CPU data for immobilizer coil on FAW Wei Chi V5(PIC)
Initialize CPU data for immobilizer coil on FAW N5 (FREESCALE)
Initialize CPU data for immobilizer coil on FAW N7 (FREESCALE)

Why immobilizer coil needs to be initialized?
Take FAW Wei Chi V5 (Immobilizer coil model is 89783-52Q40) and FAW N5/N7
(Immobilizer coil model is 89783-TBA00) for example, if their keys are lost, the 4S
tend to replace new immobilizer coil then match key, usually a immobilizer coil cost
about $50-$85. However, our OBDSTAR PIC adapter is designed to initialize adapter
without replacing immobilizer coil, you just directly match new key after immo coil
initialization. Besides, PIC adapter is able to initialize immo coil for unlimited times, which will help car owner save the new immobilizer coil cost and also time cost.

OBDSTAR X300 PRO3 feedback on EEPROM function and workable car models
OBDSTAR X300 PRO3 working with eeprom adaptor for immo matching (EEPROM is used to read out password from EEPROM chip and restore data).
This is what you can read with eeprom adapter
EEPROM/PIC ADAPTER
EEPROM
Read pin code
Audi
Engine ECU(95040)
Engine ECU(95080)
Immobiliser(C46M6)
Dash board(C66M6)
Dash board(93C86)
Baic
E150
BCM(24C16)
Engine ECU(95080)
E130
BCM(24C16)
Engine ECU(95080)
Brilliance
Delphi Immobiliser ECU(93C66)
Buick
Sail
Engine ECU(95080)
Excelle XT
BCM(24C16)
New GL8
BCM(24C16)
09-Lacrosse
BCM(24C16)
09-Regal
BCM(24C16)
Encore
BCM(24C16)
BCM(24C32)
Cadillac
SLS
BCM(93C86)
SRX
BCM(24C16)
Changan
Cm8
Engine ECU(95080)
CX20
BCM(93C46)
CX30
BCM(93C46)
Yuexiang
BCM(93C46)
Zhixiang
BCM(93C46)
Benben
Immobiliser(95040)
Honor
Engine(95080)
Changhe
Immobiliser(93C46)
Chery
STEC Immobiliser
Engine ECU(95080)
DIAS Immobiliser
Immobiliser(24C02)8 pin
Chery Self
Immobiliser(24C02)8 pin
Delphi
Immobiliser(93C66)
Smart Key
95160
Chevrolet
Aveo
BCM(95160)
Cruze
-2014
BCM(24C16)
2014- BCM(24C32)
Trax
BCM(24C16)
Chrysler
Immobiliser(24C16)
Immobiliser(95080)
Cherokee
4.7 Immobiliser(24C02)4 pin
09Jeep Immobiliser ECU(24C16)
Citroen
Berlingo
BSI 95160
Xsara
BSI 95040
V1
V2
C2
BSI 95128
BSI 95160
C3
BSI 95160
C5
BSI 95160
Picasso
BSI 95160
Triumph
BSI 95128
V1
V2
V3
Elysee
Immobiliser(93C46)
C-QUATRE 2014
BSI(95128) ~~~ang
Immobiliser(93C46)
Dflz
Lianchuang Immobiliser(24C02)8 pin
Dfpv
S30
Immobiliser(93C46)
Immobiliser(24C02)8 pin
H30
Immobiliser(24C02)8 pin
Geely
Emgrand
Immobiliser(93C56)
EC820 Mitsubishi Immobiliser(24C02)
Global Hawk
Shiye jiaotong Immobiliser ECU(24C02)4 pin
Yuanjing
Engine ECU(95080)
Huapu
Immobiliser(24C02)4 pin
Greatwall
Delphi Immobiliser ECU(93C66)
Shiye jiaotong ImmobiliserECU(24C02)4 pin
M2
Immobiliser ECU(24C02)8 pin
Wingle disel engine ECU(95320)
Pincode 1
Pincode 2
EDC16C39-6.H1(95320)
Hafei
Immobiliser(24C02)8 pin
Engine ECU(95080)
Hnmazda
323(8C chip)
Engine ECU(93C56)
Immobiliser(24C02)8 pin
Shiye jiaotong Immobiliser ECU(24C02)4 pin
Engine ECU(95080)
Hawtai
Boliger
Immobiliser (24C02)8 pin
SANTAFE
Immobiliser(24C02)8 pin
Disel engine ECU 2007(95040)
Isuzu
Immobiliser(93C66)
Lotus
Immobiliser(93C56)
Immobiliser(24C02)8 pin
MG
MG3
Engine ECU(95080)
BCM(24C16)
BCM(95160)
MG5
BCM(95160)
MG6
Engine ECU(95080)
Mitsubishi
Wing god
Immobiliser(24C16)
Jiangling
X6
Engine ECU(95320)
X8
Engine ECU(95320)
Liebao
Immobiliser(24C02)8 pin
Engine ECU(95080)
Peugeot
206
BSI 95160
V1
V2
207
BSI 95160
307
BSI 95160
BSI 95128
V1
2008 V2
2010 V3
406
BSI 93C66
BSI 95040
407
BSI 95128
408
BSI 95128
607
BSI 93C66
Porsche
Engine ECU(95128)
Engine ECU(95160)
ROEWE
350
2013
BCM(95160)
2014
BCM(24C16)
550
Engine ECU(95080)
W5
2013
BCM(95160)
2014
BCM(24C16)
Skoda
Engine(95040)
VW
Bora
Engine(95040))
Beetle
Engine(95040)
Gol
Immobiliser(93LC56B)
Jetta
Dash board(2007–2009)
Engine(2007–2012)
Lavida
Engine(95040)
Passat
Engine(95040))
Polo
Engine(95040))
Engine(95080))
Sagitar
Engine(93C86)
Engine(95040)
Santana
Immobiliser(93LC56B)
Immobiliser(24C04)
Sharan
Engine(95040)
Toureg
Engine(95040)
Engine(95160)
Engine(95128)
ZZnissan
Engine ECU(95320)
Immobiliser(24C02)8 pin
Zotye
Immobiliser(24C02)4 pin
Data initialization
Toyota/Lexus
Immobiliser initialization
VIOS immobiliser(with G)
Key chip 4D60(93C66)
Help
Camry immobiliser
With G
89780-60380(93C66)
Without G
89780-06020(93C66)
Help
Corolla immobiliser
89780-02070(93C66)(Without G)
Help
RAV4 immobiliser(with G)
89780-0R040(93C66)
Help
Other immobiliser(with G)
Data initialization(93C66)
Help
4C chip
Camry
Engine initialization(93C56)
Help
Corolla
-05 month 6
Engine initialization(93C56)
Help
05 month 6-
Immobiliser initialization(93C66)
Help
Vela
Engine initialization-0D340(93C56)
Engine initialization-0D350(93C56)
Engine initialization-0D660(93C56)
Help
Smart key system
Crown(12 generation)
Smart key 89990-30061(S2943)
Help
Zelas(2011)
Steering column lock ECU 5290(93C46)
Immobiliser 89990-21010(93C86)
Help
Highlander
Smart key 89990-0E020(93C86)
Immobiliser 89784-0E020(93C46)
Help
Lexus
ES350
Smart key 89990-33330(93C86)
Immobiliser 89784-33030(93C56)
Help
IS250
Smart key 89990-53130(93C86)
Immobiliser 89784-53030(93C46)
Help
RX270
Smart key 89990-48240(93C86)
Immobiliser 89784-48040(93C46)
Help
Previa
Smart key 89990-28131(93C86)
Immobiliser 89784-28011(93C46)
Help
13 New REIZ
Steering column lock ECU 5290(93C46)
Smart key 89990—0P020(93C86)
Help
Camry
2009
Smart key89990-06021(93C86)
Immobiliser 89784-06020(93C46)
Help
2014
Steering column lock ECU 5290(93C46)
Smart key 89990-06140(93C86)
Help
RAV4
-2012
Smart key 89300-42070(93C86)
Immobiliser 89784-0R020(93C46)
Help
2014
Steering column lock ECU 5290(93C46)
Smart key 89990—0R030(93C86)
Help
EEPROM RW
24CXX Series
24C01
24C02
24C04
24C08
24C16
24C32
24C64
93CXX serial
93C46
93C56
93C57
93C66
93LC66A
93C76
93C86
25CXX Series
25010
25020
25040
25080
25160
25320
25640
25128
25256
95CXX Series
95010
95020
95040
95080
95160
95320
95640
95128
95256

OBDSTAR X300 Pro3 Odometer Adjustment Vehicle Model
Audi A3/A4/A6/A8/Q5
VW Tiguan/Caddy/Polo/Golf/Passat/Amarok/Jetta/Seat/Skoda...
Hyundai Verna/Accent/Creta/Verna/I20
Kia Sportage/Sorrento
Opel Isignia/Astra/Insignia/Zafira/Astra
Chevrolet Cruze/Captiva
Range Rover
Ford Tourneo/Focus
Fiat Grand Punto/Fiorino
Other


OBDSTAR X300 Pro3 Reviews:
   Customer 1:
   For the price and its function over Skp900 looks to be the better buy.mileage is extra bonus, more money & something different. (New story’s)
   obd2 scanning is limited but extra bonus on rewriting vin # on donor Ecu.
   Customer 2:
   I have bought 2 of there newest programmer (Key Master X300 Pro 3) claim to have the same program as the SKP900. Not true it lacks the
   newest protcal, all thou the F100 does have the newest protcal.
   Customer 3:
   OBDSTAR F100 Ford/Mazda key pro and OBDSTAR X300M is the separate program out from X300 Pro3 Key Master, while if you are a maste
   working at    workshop/garage, you are advised to own one OBDSTAR X300 PRO3 Key Master which include all vehicle models and function
   including: key programming, odometer adjustment, PIC function (read write CPU data on a part of car computer) and EEPROM function
   (read out password from EEPROM chip and restore data), EPB, oil service reset, battery matching etc.

OBDSTAR X300 Pro3 Update Process:

  step1:Download the update tool and diagnostic software on www.obdstar.com,and install it.
  step2:After update tool installation completed,click the update tool software icon on desktop to run it.

  step3:Click the source menu,choose the program you want to update,click confirm.

   step4:Click and select all the software then clik"update".And wait for several minutes then the updating finished.

 Package Including:

1pc x X300Pro3 Multiplexer
1pc x OBD II-16
1pc x HONDA-3
1pc x HYUNDAI/KIA-10
1pc x KIA-20
1pc x Main Cable
1pc x SD Card
1pc x SD Card Reader
1pc x X300 Pro3 User's Manual
1pc x EEPROM Adapter
1pc x Power Transformer

OBDSTAR X300 Pro3 Key Master IMMO Car List  Display:
