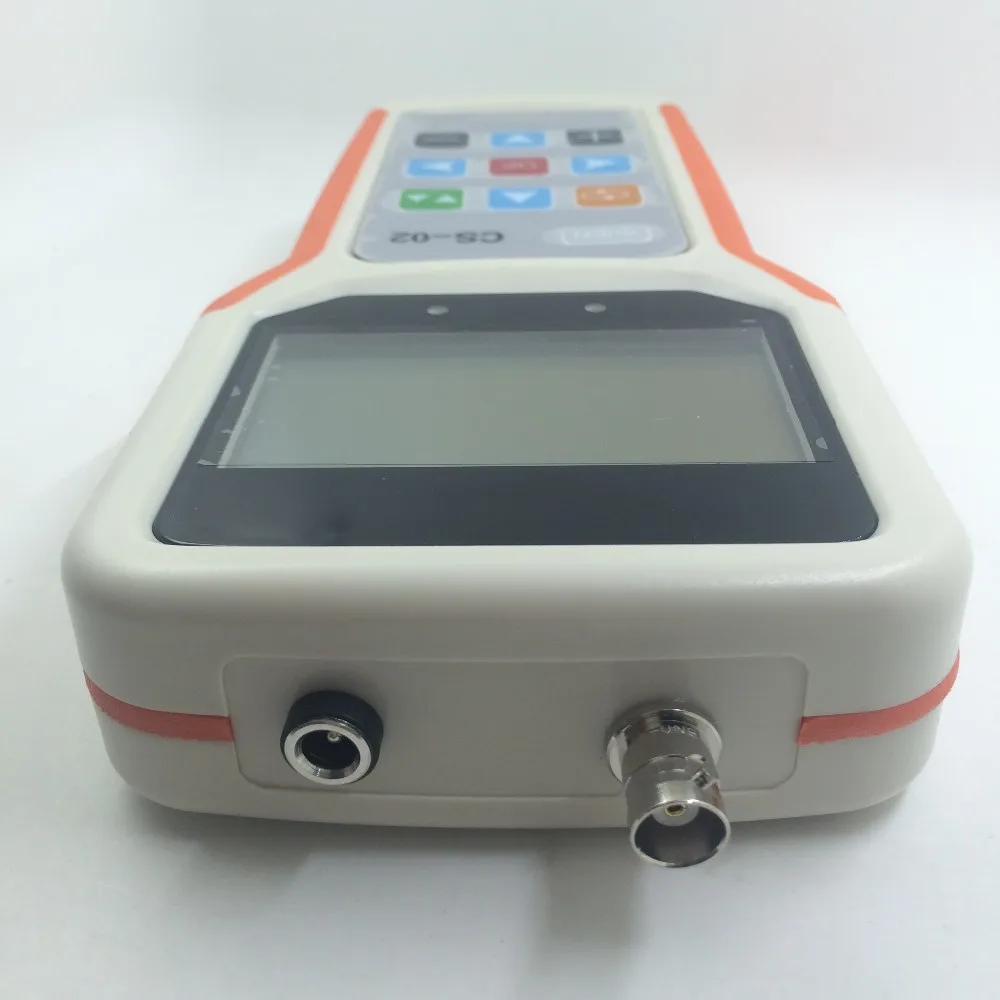

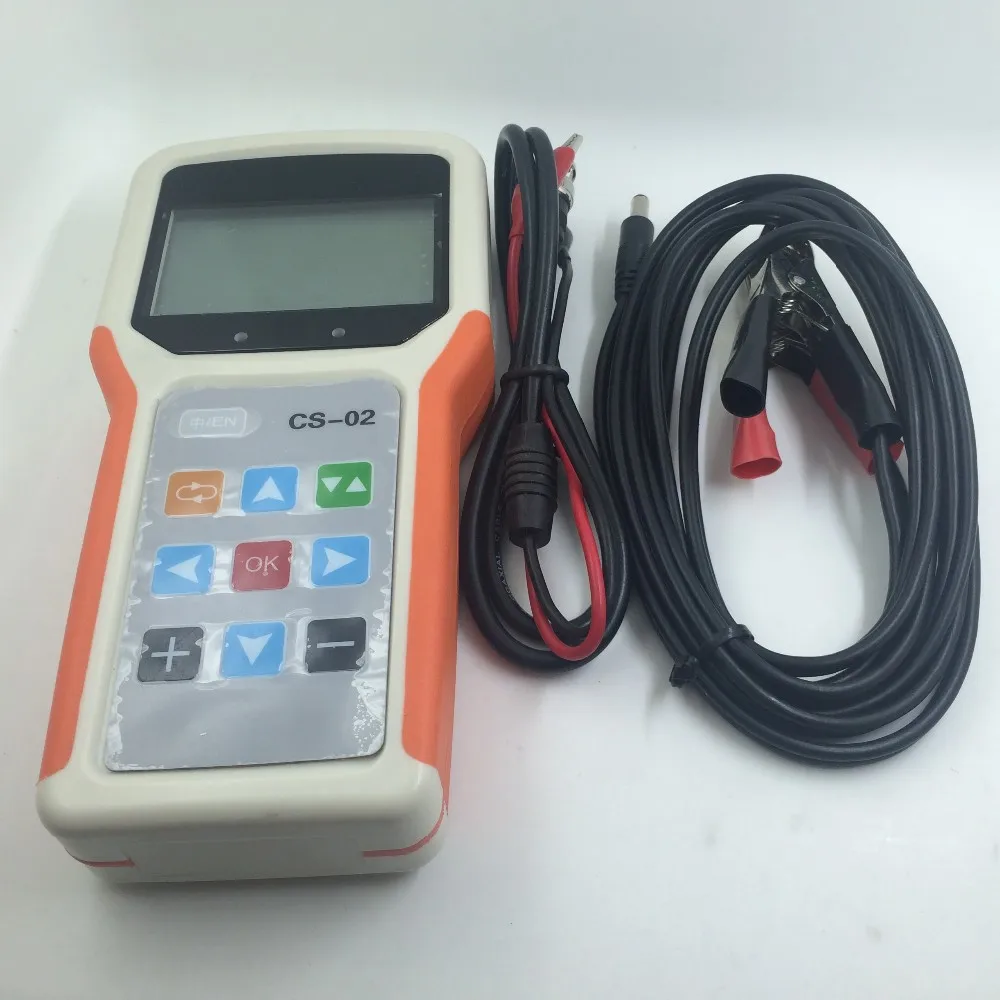

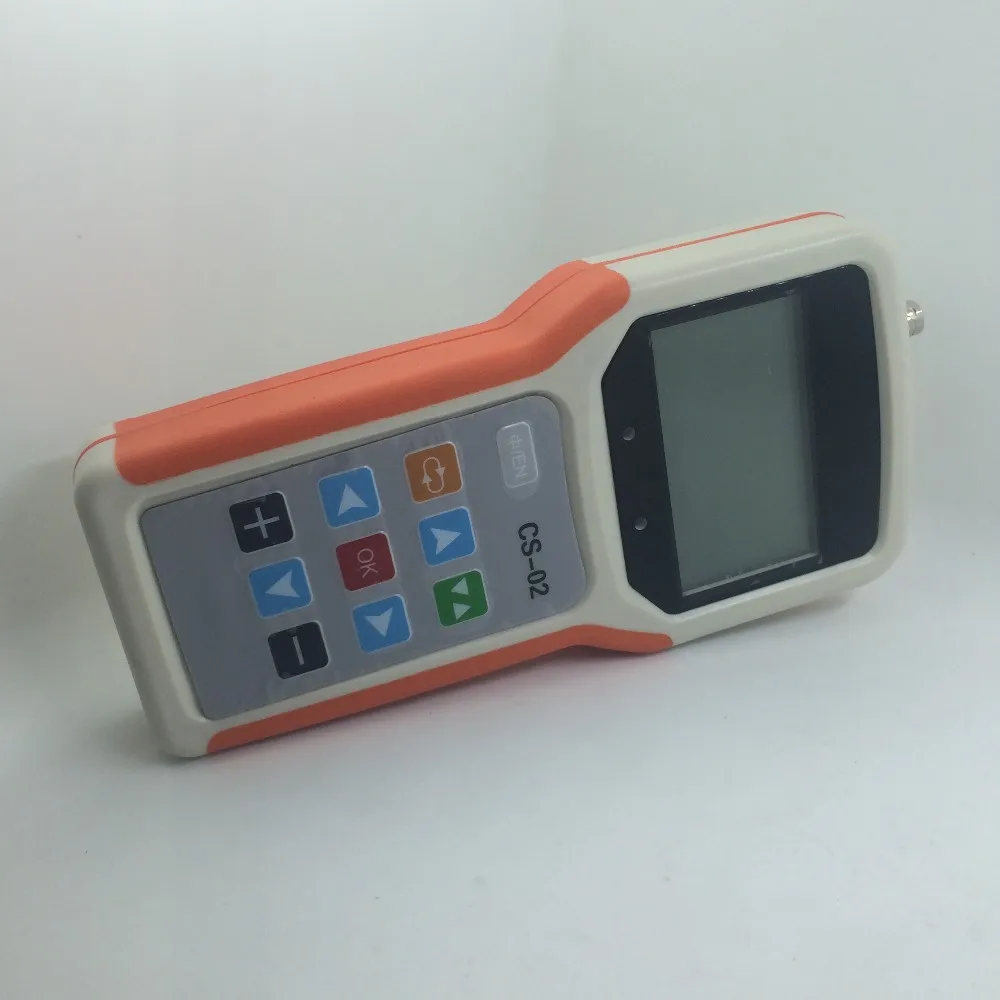

Automotive Signal Generator CS-02 simulate signal parameters Analog voltage and frequency waveforms English version

1, the sine wave signal:

1 --- 2KHz frequency stepless adjustment; signal single-ended output to ground; 5Vpp --- 18Vpp amplitude stepless adjustment.
2, the square-wave signal:
1 --- 20KHz frequency stepless adjustment; signal single-ended output to ground; 5Vpp --- 9Vpp amplitude stepless adjustment.
3, X + Y edentulous signal:
1 --- 2KHz frequency stepless adjustment; 5Vpp --- 18Vpp amplitude stepless adjustment; 1 --- 60 signal output in real time to adjust the number of teeth;
1 --- 3 Signal output in real time to adjust missing teeth; 0 , 180 phase of the signal output from real-time adjustment;
X + Y signal from the square wave, the sinusoidal output to ground, etc., to facilitate a variety of crank signal simulation applications; in the signal-to-ground output sine wave, square wave characteristics of real-time switching.
4, the voltage signal:
0 --- 5V voltage stepless adjustment; output voltage accuracy of 0.02 real-time display; signal single-ended output to ground.
5, the oxygen sensor signal:
0.1V, 0.9V oxygen sensor oxygen ion concentration in dilute concentrated switched in real time; signal single-ended output to ground.
Mainly used in the oxygen ion concentration of the oxygen sensor output analog signal.
6, the resistance of the signal:
0 --- 10K resistor output,
7, PWM signal:
2 Hz --- 999 1 Hz frequency independently adjustable; 1% --- 99% 1% duty cycle independently adjustable; signal single-ended output to ground; amplitude fixed output.

Function Deion

Sine wave output
Frequency :1-2000hz

Output amplitude :1-9v.

Mainly used in magnetic sensors produce speed, wheel speed, vehicle speed analog signal.
Example: 100hz 5v sine wave output waveform
Square wave:
Frequency :1-2000hz,
Output amplitude :1-9v

Mainly used Hall and photoelectric sensors generate speed, wheel speed, camshaft position, air flow and other digital frequency analog signal.

Example: 10v 500hz square wave
Sine wave signal X + Y
XY adjustable, the adjustment range X (0-60), Y (0-3).

Output frequency :1-2000hz

Output amplitude :1-9v

Mainly used in magnetic-electric, optical, Hall-style crankshaft missing teeth and other analog signal.

Example: 58 +2 sine wave output waveform:

X + Y square wave signal

XY adjustable, the adjustment range X (0-60), Y (0-3).

Output frequency :1-2000hz

Output amplitude :1-9v

Mainly used in magnetic-electric, optical, Hall-style crankshaft missing teeth and other analog signal.

Example: 60 +1 square wave output waveform

Voltage output:

DC voltage :0.1-9 .0 v

Mainly used in throttle position, intake pressure, EGR valve position, water temperature, intake air temperature, etc. of the analog voltage signal.

Oxygen sensor signal simulation:
Oxygen sensor output waveform can be simulated.
Mainly used in the oxygen ion concentration of the oxygen sensor output analog signal.
PWM output
Frequency :1-2000hz

Amplitude :1-9v

Duty cycle: 1% --- 99%

Mainly used in the ignition control signal, fuel injection control signal, the camshaft position signal, EGR control signals and the analog pulse signal.

Instrument features
The apparatus according to the laws of automotive diagnostic site and the actual needs, summarizes and analyzes the existing signal generator characteristics of each car, in addition to a significant increase in functionality, but also has the following new features.
1, the signal characteristic time adjustable: while the output of the signal above the signal amplitude, frequency, missing teeth, fine adjustment of the waveform and other indicators, this feature greatly facilitates the process in the automotive repair the fault determination;
2, user-friendly interface: The instrument uses the most simple design ideas, 128 * 64 LCD display interface logic is clear; panel operation indicate clear, easy to operate quickly perform each operation;
3, the appearance of compact and convenient, the use of the second injection, the use of feel good. Internal device used in all imported, users can be assured!
