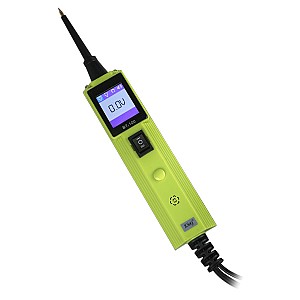

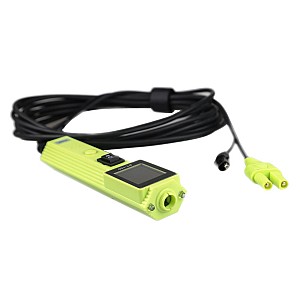

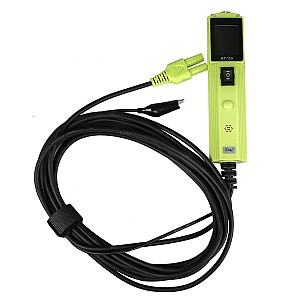

Original JDIAG BT-100 Battery Electrical System Circuit Tester General Deion:
JDIAG BT-100 is the best electrical tester for reducing diagnostic time in all 6- to 30-volt vehicle electrical systems. Hook BT100 up to the vehicle's battery, you can: 1. Easy to confirm if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another. 2. Test for continuity with its built-in auxiliary ground lead. 3. By pressing the power switch, the positive or negative current will be conducted to the probe tip for testing the function of an electrical component without the use of jumper wires. 4.Test for poor ground contacts instantly without performing voltage drop tests. JDIAG BT-100 is also short-circuit protected, its internal circuit breaker will trip if it becomes overloaded. 5. Follow and locate short circuits without wasting fuses. JDIAG BT-100's long cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds. JDiag Series New item car battery Tester BT-100 Features: 1. Tiny deviation and more precise testing data 2. Can protect the circuit when power supply is reversed 3. Support input voltage range from 9V to 70V 4. Multi-languages available even the minority languages can be customized 5. The Large battery clip can carry more load 6. The 10m diagnostic cable is made of environmentally-friendly material, not pungent 7. Support 12V cars and 24V trucks 8. Overload self protection: reset automatically after overload, no need operation 9. The portable nylon bag is waterproof and oil proof 10. With personalized exquisite appearance 11. Low power consumption and high performance 12. Available with personalized customization and OEM orders. Specifications 1. Display: TFT color display (160 x 128 dpi) 2. Operating Temperature: 0 to 60°C (32 to 140 F°) 3. Storage Temperature: -40 to 70°C (-40 to 185 F°) 4. External Power: 12.0 or 24.0 V power provided via vehicle battery 5. Dimensions: Length 165 mm * Width 40 mm * Height 27 mm JDIAG BT-100 Specifications DC voltage range: 0-65V +1 digit Resistance range: 0-200 K ohm Frequency response of tone pass through 0Hz to 10K hz. Circuit Breaker Rating current: 1-10 Amp Testing Standard 100% current : no trip 150% current: trip in one hour 200% current: trip in 3-30 seconds. 300% current: trip in 0.5-4.0 seconds. Package Includes: 1pc x Jdiag BT100 Interface 1pc x User’s Manual 1pc x Cigarette lighter adapter 1pc x Battery hookup clips 1pc x Probe tip 1pc x 10m. extension cable 1pc x Well-designed case 1pc x Nylon Portable bag
