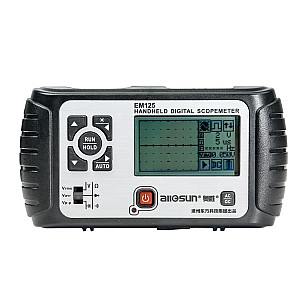

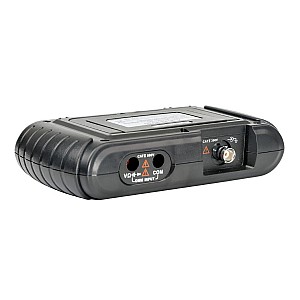

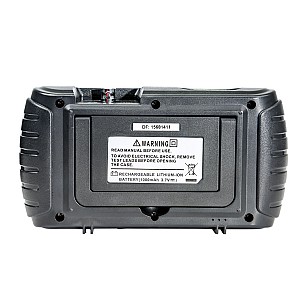

All-sun 25MHz 100MSa/s Digital 2 in1 Handheld Portable Oscilloscope+Multimeter Single Channel Waveform USB LCD Backlight EM125
This handheld oscilloscope is a portable waveform measurement tool and fulfills basic electronic engineering requirements. It is one of the best 2 in 1 test tools in outdoor testing or teaching. The high speed AD sampler and CPU can convert the analog signal into digital signal and show on the 128X64 LCD backlight display. The high speed comparator can get good edge trigger to present steadiness. Its multimeter part uses a dedicated chip (6000-count), which can provide a higher precision. The large capacity lithium battery can ensure 10 hours working after fully charged. The plug meets American and European standards. AUTO Key: The oscilloscope will set the parameters to input signal in the most suitable way. The multimeter measurement range will switch autom atically. Scopemeter Specification: Bandwidth (-3dB) 25MHz Sampling Rate Max 100M Sa/s Channel 1 Coupling AC , DC Rise Time <17.5nS Input Impedance 1MΩ,<=20pF Max Input Voltage CAT II 300V Vertical Resolution 8bit Vertical Sensitivity 50mV / div -20V/div Horizontal Resolution 10nS/div Horizontal Sensitivity 10nS/div - 5S/div Record Length 0.1K/Channel Trigger Mode Auto , Rising edge , Falling edge Screen 128x64, with LED backlight Battery 3.7V lithium battery, about 1000mAH Charger Input Voltage : 100-240V ac , Output: DC5V+-10% , 1000mA Size 174 x 92 x 40 mm Weight 330g Display 6000counts Input Max Input Voltage: CAT II 600V Continuity Test In 600Ω range, beeps at<25Ω Diode Test If voltage drop of the diode under test is more than 2V or if input terminals are open, the display will show ”OL”. If voltage drop is less than 0.25V, the built-in buzzer will sound. Capacitance 6.000Nf-6Mf,7 ranges Resistance 600.0Ω-60.00MΩ,6 ranges Voltage 6V-600V,3 ranges
Vertical System: channel of scope: Bandwidth (-3Db) 25MHz Accuracy 50Mv/div: ±3% of full scale Vertical Offset Accuracy(DC) ±0.2div±2mV±0.5% of offset Trigger DC to 20MHz:0.8div Specification of probe: Rise Time X1 23.3ns X10 17.5ns Bandwidth X1 DC to 15 MHz X10 DC to 25 MHz Input Impedance X1 1MΩ X10 10MΩ(without scope's input resistance 1 MΩ Input Capacitance X1 46Pf(without scope's input resistance 1 MΩ) X10 about 15pF
Multimeter Specification Accuracy Form:±(% of reading +digits)

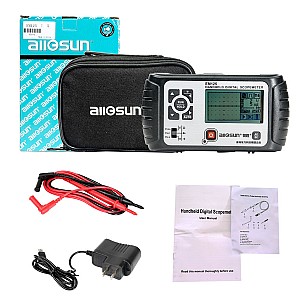

Package Includes:
1pc x Scopemeter 1pc x 20MH ( 10:1 ) Probe 1pc x Test lead 1pc x Charger 1pc x Built-in battery (1200 mAh) 1pc x User manual 1pc x Carrying bag
