CGDI Prog MB Benz Car Key Add Fastest Benz Key Programmer

CGDI Prog MB Latest Update Information:
CG-MB Benz Monster V2.9.1.0  NEW (2019.09.17)
The Mercedes monster calculates the password in only 24 seconds.
50% of users only need 24 seconds to complete the calculation
40% of users need 35 seconds complete the calculation
10% of users need 70 seconds complete the calculation

Quality Experience:
1. Fix the 21DF key write function;
solve the problem that other clear keys(the data inside the key can be used to rewrite after erasing the data) cannot be written.
2. Optimize the reading key experience; (reading speed is greatly improved)
3. Optimize the read lock experience; (read speed is greatly improved)
4.Add the function that 164 (2009-) does not require a gateway to collect all lost.
(Supports no gateway repeated plugging and AC fast acquisition)
5. Add new 164 (2009-) no gateway full drop acquisition wiring diagram;
6.Modify old 164 (2009-) no gateway full drop acquisition wiring diagram;
7. Modify the W203/W463/W639K lock wiring diagram.

CG-MB BenzMonster V2.8.7.0  NEW (2019.08.23)
1. Added SLK (R171), C-Class (W204), CLK (W207), E (W212), GLK, SLS (197), CLS (W218) instrument EEPROM reading and writting function.
2. Fixed the problem of 1645450708 fast acquisition cannot calculate the password.
3. Added the new 21DF key reading function.
4. Added the 00032638 chip resetting function.

CGDI Prog MB Updated to V2.8.6.0 (July 20th, 2019)
1. Added the infrared read EIS function. (requires simulation key)
2. Optimized the without gateway all lost collection function for the old 164 EIS. (more stable)
3. Added the no gateway wiring diagram of old 164 EIS , modifyed the 204-204-212 lock wiring diagram.
4. Added the 21DF key write function. (Support the 57 key of the deputy factory on the market, support write the original key that VVDI erased)
5. Added the CG key reading identification code function.
6. Added the CG key switching key frequency function.
7. Added the CG key checking function.
8. Added the CG key point collection function.
9. Added the CG key point redemption function.

CGDI MB V2.8.5.0 Update (2019.07.06)
1. Added all lost collection function for W215/W220 locks.
2. Changed the way of wiping the auto computer. (Solved the problem that parts of ECUs cannot clear)
3. Fixed an issue where calculating passwords might go wrong.
4. Changed the old version164,221 locks all lost collection process.
5. Added the K-line locks wipe and write function.
6. Added 220EIS/215EIS/210EIS/208EIS/203EIS/639EIS/906EIS direct replacing the locks through the infrared , The world's first release.
7. Added 220EIS/215EIS/210EIS/208EIS/203EIS/639EIS/906EIS direct clearing the KM number through the infrared , The world's first release.
8. Added Mercedes FBS4 key disable function, Supported models: 205, 222, 166, 447, 246 and 218 etc.
9. Added the Spanish language display.
10. Added paypal payment function.
11. Replaced part of the wiring diagram.
12. Adjusted software interface layout.
13. Optimize network connection stability.

CGDI MB Prog V2.8.4.0  (2019.05.10)
1. Added device status check function before collecting data.
2. Added the all loss collection function of the EIS W639 (CAN 2009-).
3. Added the AC adapter fast collection function of the EIS W639 (CAN 2009-).
4. Fixed the problem that the new simulator is recognized as the old simulator when the connection is not normal.
5. Corrected the EIS W210 AC adapter fast collection wiring diagram.
6. Added W169 all loss collection wiring diagram，W639 (CAN 2009-) all loss collection wiring diagram,W639 (CAN 2009-) AC adapter fast collection wiring diagram.
7. Shielded the EIS K-line wipe function.
8. Shielded the EIS W204 AC adapter fast collection function.
9. We have added perimeter servers to improve the network connectivity experience for users outside China.
CG-MB BenzMonster V2.8.1.0 NEW (2018.12.19)
1. Added K-line all lost collection support EIS Model 202/208/210, 203/463/639
2. Optimize the Keyless repeatedly plug collecting process. Fix problems that can cause program errors in specific situations in the collection.
3. Optimize network connectivity and improve server connectivity stability.
4. Software display language increases regional restrictions.

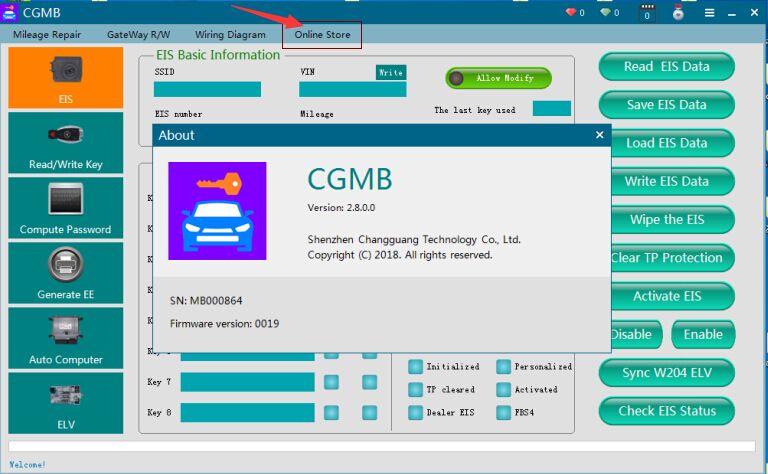

CG-MB BenzMonster V2.8.0.0  NEW (2018.10.28)
1. Added online store function
Now, you can self-renew your password calculation service or recharge points in the store. Currently only WeChat payment is supported.
2. Added the automatic activation function
When you first purchase a device, you can choose the subion service version to activate the device. Please note that the subion version cannot be changed after activation.
3. Remove the limit on the number of password calculations per day. You can calculate the password as much as possible within a day.
Of course, the premise is that you have more than enough points.
4. We greatly optimized the stability of the server.
We are deeply sorry for the impact of the previous period of downtime maintenance, and we thank our customers for their support.

CG-MB Benz Monster V2.7.2.0 2018.09.20)
1. Fixed the problem that read EIS failed when 209/211 collection with key.
2. Fixed the problom that 209 sync ELV and 169 write ELV display is not clear.
3. Fixed the problom that the K-line EIS is enabled successfully, but the display fails.

CG-MB BenzMonster V2.7.1.0  (2018.09.08)
1.Added function: read FBS4 gearbox basic information
2.Fixed the problom that partial device upload data validation failed

CG-MB Benz Monster V2.7.0.0  NEW(2018.08.06)
1. Add 169 ELV erase and write function;
2. Add check EIS status function;

CGDI MB Mercedes Benz Key Programmer V2.6.0 Newest Update Info (2018-06-02):
1. Add ELV emulator function: support one-click unlock / read & write data / read password.
2. Add ELV password writing directly without erasing EIS and synchronize.
3. Add OBD mileage reset function for the following cluster types:
C(W204) / GLK(X204) / CLK (207) / E(W212) / SLS (197) / CLS (W218), R-Class (W251) /GL(X164) /ML(W164), E-Class (w211) /CLS(W219), S-Class (W221) /CL(216), C-Class (W203) / CLK(W209), SLK(R171).
4. Add the gateway EE /Flash OBD reading and writing for the following gateway types:
C_Class_W204, E_class_W211, E_class_w212, CLK_X204, CLK_W207, SLS_W197, CLS_W218, M-Class_W164, R_class_W251, Slk_R171, GL_X164, S_class_W221, CL_W216.
5. Add the non-HC05 EIS format file and the original data type save function, so that you can complete modifying the Mercedes EIS data by clicking one button.
6. Fix the problem that a partial BE keys fail to read after writing.
7. Add a button to clear the fault code.
8. Fixed the problem that part of the ISM can not erase;
9. Fixed the problem that some EIS data loading error;
10. Add consumption points to calculate key password mode.
Consumption points do not have the device expiration limit, when the device expires, it can still be calculated with consumption points. Points will be in the company launched a variety of activities to be obtained, everyone stay tuned!

CGDI MB 2.5.0.0 Update (2018-03-13):
1. Add ELV repair function, including: enable ELV, virgin ELV (repair damage ELV chip)
2. Add the function of BE key to save file directly
3. Add W205, W218,W166 FBS4 EIS type detection
4. Add save EIS data format flags.
5. Fixed the problem of part of the ECU,TCU,ISM/DSM/ESM cannot erase

CGDI MB Benz Monster updated 2.4.0.0 2017/12/29
1. Add activation Key function
In the case that the EIS cannot activate the key and the key lamp steady, it can be activated manually with the Benz Monster.
2. Add detection FBS4 key type function
Currently do not support the acquisition, engineers are being overcome, please look forward to.
3. Add View wiring diagram function (Menu-Wiring Diagram)
Contains EIS, ELV, ECU, ISM, TCU wiring diagram.
Download: https://www.dropbox.com/s/grcy0cz2vaw651s/BenzMonster_2.4.0.0_Setup.exe?dl=0

Benz Monster 2.0.0.0 2017/11/11 Update Info:
1. Calculate the erase password function (including the engine computer, ISM computer, EGS computer, ELV)
2. Calculate the key to enable the password function (you can directly use the disable key)
3. Erase the lock function (support CAN protocol, K-line protocol)
4 write lock data function
5. Write frame number function
6. Activate the lock function
7. Clear the TP protection function
8. Calculate the key current track code function
9. Add to determine whether the dealer lock
10. Fix problems that can cause the program to crash under certain conditions
11. Optimization part pop-up prompt box to enhance the stability of the program
12. increase some tips, the operation experience more accurate

CGDI MB Prog Function List:

Able to add keys on Mercedes Benz and program a new key when all keys are lost.
Add new Mercedes Benz keys: Data acquisition for 1 minute 50 seconds, pin code for 40 seconds and 99% success.
Program a new key to the following models when all keys are lost: 211, 209,204, 207, 212, 166,246,197,172,164+, 216 etc.

EIS/EZS Function:
1). Can read EIS data via OBD, no need to distinguish the EIS/EZS model.
2). Can display the key status and directly disable the key position.
3). Can display EIS Number, can distinguish the Benz model
4). Can display EIS status.
5). Automatically identify EIS model.
6). Automatically identify CAN protocol

Generate the Key Data:
1) Can generate the key data of HC05/908/912/9S12/NEC EIS/EZS
2) Time: 26 seconds
3) Format: 41/51 (41 format is smart key data)

Infrared Key Function:
1) Can directly read key pin code via infrared on parts of 209/211/220/215 EIS.
2)Can read/write EIS via infrared.

CGDI MB Prog Programming Key Features:

1). Automatically identify the basic key information (including how many times you used SSID)
2). Can directly read pin code of BE keys via infrared, can erase BE keys.
3). NEC adapter can write the original Benz smart key and common key.
4). Can write the Benz original key via infrared.
5). Can restore the data of key and EIS with the key password.

CGDI MB Prog Benz Car List:

Mercedes-Benz A series (2004 -)
Mercedes-Benz B series (2005-)
Mercedes-Benz C Series (2001 - , including 210)
Mercedes-Benz E Series (2001-, including 203)
Mercedes-Benz CL series (2001-)
Mercedes-Benz GLK (2004-)
Mercedes-Benz ML series (2003 -)
Mercedes-Benz R series  (2003 -)
Mercedes-Benz G series (2003 -)
Mercedes-Benz S Series (2001 -, including 220)
Mercedes-Benz SLK  (2003- )
Mercedes-Benz SLS (2004 -)
Mercedes-Benz Vito (2003-)
Mercedes-Benz Sprinter (2003 -)
Mercedes-Benz Vito (2003 -)

How to Use CGDI MB Programmer Add Key for Benz?

CGDI Prog MB is able to add Mercedes Benz car keys as well as program new keys when all keys are lost.
Step 1: Click on “Lock (EIS)
Step 2: Click on “Read EIS data”
Step 3: Click on “Computer Password”, then click on “Copy key with key”
Step 4: Click on “Other Keys” (One generation of key 705E6 key), then click on “OK”.
Step 5: Please insert the key into EIS and click OK.
Step 6: Please insert the key into the device and click on OK!
Step 7: Collecting the data, do not remove the key.
Step 8: Please insert the key into EIS and click OK.
Step 9: Please wait for 7 seconds.
Step 10: Please pull out the key from the EIS, and then click OK!
Step 11: Please insert the key into the EIS again and click OK!
Step 12: Unplug the key for 5 seconds, then insert the EIS, then click OK!
....
Step 34: Select chip type.
Step 35: Note: Smart key please choose 41 format, common key and BE key please choose 51 format!
Step 36: Select the location of writting key, then click on “Open”.
Step 37: CGDI MB Write key success!
Step 38: Password display area, write down the password manually.
BE key read password directly, no need to collect data!



CGDI MB Prog Customers Feedback:

1. CGDI MB can program key for r230 mercedes benz sl 2001, chassis w230.
2. CGDI MB can't program key for FSB4, there is no working tool yet.
3. CGDI MB can program key on clk 2007.
4.CGDI MB can program the key for 2000 e430 & 1999 e320, need to remove the EIS and read the data using the programmer i.e CGPRO 9S12, VVDI Prog, Xprog.

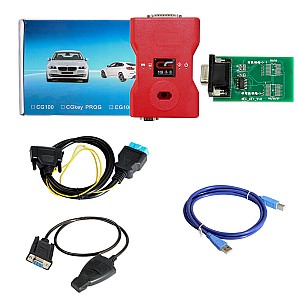

CGDI MB Prog Package List:

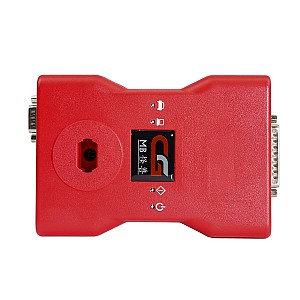

1*CGDI MB Multiplexer
1* NEC Key Adapter
1*IR Adapter
1*OBD Cable
1*USB Cable
