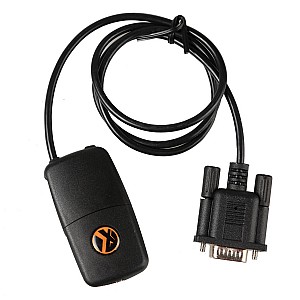

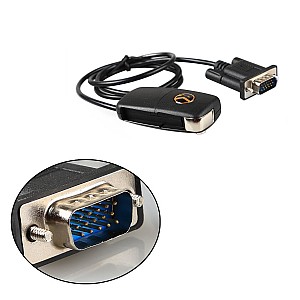

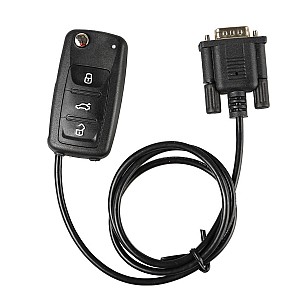

Xhorse VVDI2 48 Data Collector (No Need Register Condor)
Xhorse VVDI2 48 Data Collector is working together with VVDI can copy 48 transponder of 4th Immobilizer system. The supported type incl. NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.
To copy 48 Chip, you need:
-With the 1000 member points on VVDI2, you could use to exchange 48 chip copy function
-VVDI2 has 4th Immobilizer system function
-VVDI2 48 chip data collector
-New 48 Chip
-100 member points for one-time 48 Chip copy
How to:

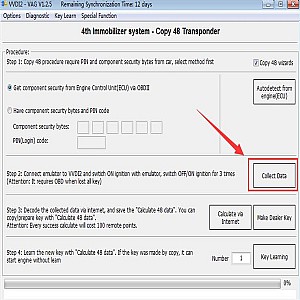

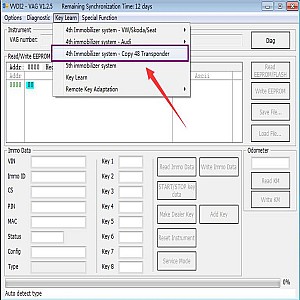

Open VVDI2 key programmer software – menu- member points system, obtain 48 copy function by yourself.
Supported type:
48 chip copy function applies to 4th Immobilizer system, the supported type incl. NEC24C32, NEC24C64, NEC24C64 color instrument, A1, A3/TT/R8, Q3, new Tiguan 873B, 883B etc.
Function:
In the process of coping 48 chip, it requires PIN code and component security bytes from car, you can select any of following method:
1) VVDI2 can read out the PIN code from Engine Control Unit (ECU) via OBDII and CS
2) You have component security bytes and PIN code
It can copy 48 chip, add 48 chip, support 48 all key lost and support smart key.
For MAGOTAN / CC, it can only copy 48 chip with original key, not support 46 chip, smart key and all key lost.
XHORSE VVDI2 48 Chip Copy (no need register condor)
Package List:
1pc x Xhorse VVDI2 48 Data Collector
