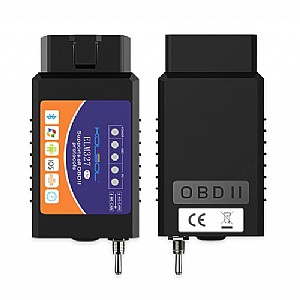

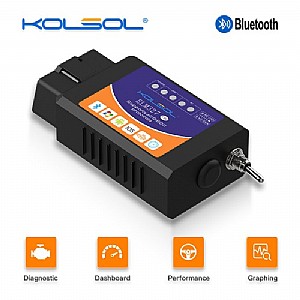

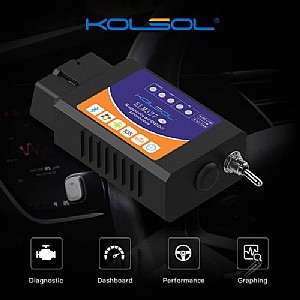

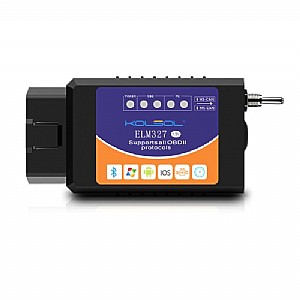

KOLSOL ELM327 Bluetooth OBD2 Scanner V1.5 ELM327 with Switch modified for Ford CH340+25K80 chip HS-CAN / MS-CAN
Highlights:
---The newly developed wireless scan tool.
---It supports all OBD-II protocols.
---Bluetooth connection.
---Wireless (Bluetooth) 5~10 meter
---Retrieve Fault Codes (DTCs) and clear Check Engine lights.
---Support FORD models open hidden function.
---In addition to adding functionality to Ford, the device is also available as a regular OBD2 / EOBD code reader on all supported vehicles.
---Support different kinds of devices to use this scan tool: Android system phones, Symbian system phones, Windows XP and WIN7 32bite computers.
Functions:
1. Read diagnostic trouble codes,both generic and manufacturer-specific,and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL ("Check Engine" light)
3. Display current sensor data,including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others...
Supported Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
A.SAE J1939 CAN (29bit ID,250*Kbaud)
B.USER1 CAN (11*bit ID,125*Kbaud)
C.USER2 CAN (11*bit ID,50*kbaud)
*default settings (user adjustable)
Compatible Systems:
Software support platform: Windows XP, Windows 7/8, IOS,Android, Symbian .
Package includes:
1PC x KOLSOL ELM327 Bluetooth OBD2 Scanner V1.5
1PC x CD-ROM
