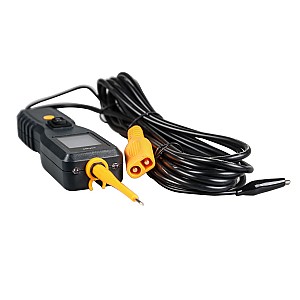

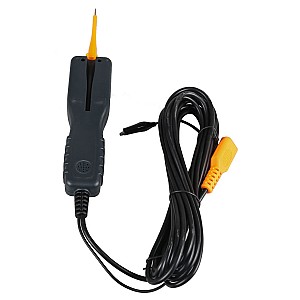

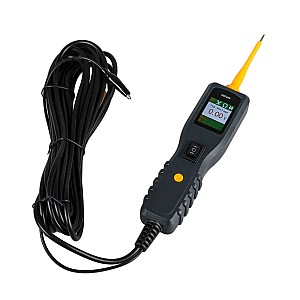

VXDAS VSP200 Power Scan Tool VSP200 Electrical System Circuit Tester
VXDAS VSP200 Power San Tool VSP200 Electrical System Diagnostics Circuit Tester is used as Power Probe for testing vehicle electrical circuit
Comparison between VSP200 and PS100:
PS100 test without the diode but only the sound PS100 transforms sound waveform when testing the alternating current (AC) adapter, the sound varies as waveform changes, while VSP200 directly displays that.
Comparison between VSP200 and YD208:
When testing the diode, YD208 can only display the negative while VSP200 shows the values. When testing AC, YD208 only displays a square wave (an analog signal) while VSP200 can show the real waveform.
VXDAS VSP200 Circuit Tester Features: 1. Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation. 2. Easy to read AV0 meter allows you to read voltage, current and resistance at the fingertip. 3. With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc. 4. Simultaneously uses the hot lead and the found lead to activate components right in your hand. 5. Instantly identifies positive, negative and open circuits. 6. Circuit breaker protected. 7. Built-in flashlight enables you to work in the dark. 8. Audio tone indicator allows for no-look menu scrolling once user are familiar with menu tone assignment. 9. 20ft(extendable)cable provides excellent accessibility to test along the vehicle. 10.Extremely easy to use and highly reliable. VXDAS VSP200 Circuit Tester Bullet: 20 foot jumper lead Continuity tester Relay and component tester Works on 12-24v Sources Once you connect a power probe to the power source you'll have a multitude of testers right at your fingertips Bad ground indicator Short circuit tester VXDAS VSP200 with Case and Accessories
The Ultimate in Circuit Testing The VXDAS VSP200 Circuit tester (Red) with the ability to supply Power or Ground with an indicator tone and bright-white LED headlamps. Features Digital Voltmeter, Min/Max, Audible Circuit Monitoring, 4mm Standard Banana Jack and Auxiliary Ground for component testing. Includes Case and 20 Foot Extension Lead and 12 Volt Power Port Adapter. Works with 12 - 24 VDC Systems. VXDAS VSP200 Circuit Tester Specifications: 1. Display: TFT color display (160*128dpi) 2. Operating Temperature: 0 to 60 (32 to 140) 3. External Power: 12.0 or 24.0 V power provided via vehicle battery
Package including: 1pc x VSP200 main unit 1pc x User manual 1pc x Cigarette lighter adapter 1pc x Battery hookup clips 1pc x Probe tip 1pc x 20FT. extension cable 1pc x Rugged blow molded case
