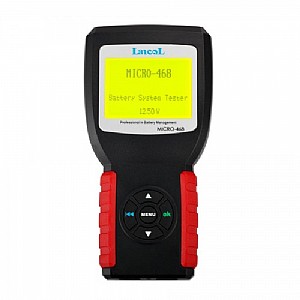

AUGOCOM MICRO-468 Battery Conductance & Electrical System Analyzer
Korean Version: English, Korean
Asia-Pacific Version: Chinese Simplified, Japanese, Russian, English
European and American Version: English, Spanish, French, German, Italian
Please choose the language version you need when place the order.
1. Simple, secure, fast, and accurate display test results (the test takes about 3 seconds)
2. Eight lines with backlight LCD display and humane language prompted interface
3. Does not emit light, no heat, no discharge, no spark, no operating dangerous
4. Automatic temperature compensation function with ripple voltage test function Multi- language menu display
5. Removable replacement test line
6. Dedicated Kelvin test clip
7. One Year Warranty
MICRO-468 Battery Tester Advanced Functionality:
Applicable to a variety of models, all kinds of batteries, and a variety of system mode
Directly detected in the car, do not need to remove the battery
Directly test the battery of the loss of electricity, bad cell battery
Battery test results include the State of Health %, State of Charge % and actual CCA capacity.
Scope: suitable for 6V & 12V battery and 12V & 24V starting and charging system detects
MICRO-468 Battery Tester Specifications:
1) Cold Cranking Amps Measure Range:
| Measure Standard |
Measure Range |
| CCA |
100-2000 |
| BCI |
100-2000 |
| CA |
100-2000 |
| MCA |
100-2000 |
| JIS |
26A17-245H52 |
| DIN |
100-1400 |
| IEC |
100-1400 |
| EN |
100-1400 |
| SAE |
100-2000 |
| GB |
100-1400
|
2) Voltage Measure Range: 6-30DCV.
3) Temperature Measure Range: -18°C - +70°C.
4) Cable Length: 120cm (3M optional)
5) Housing Materieal: Acid-resistant ABS plasticd
6) Warranty: One year.
Package including:
1pc x MICRO-468 Battery Tester
1pc x Clip
1pc x User's Manual
