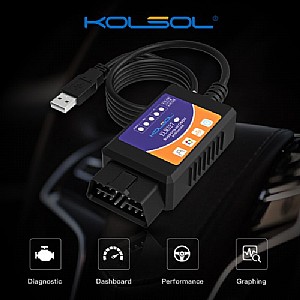

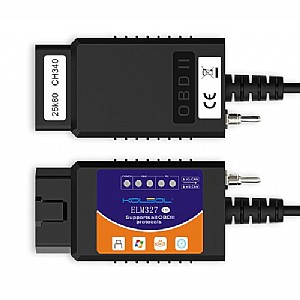

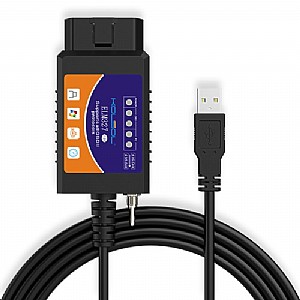

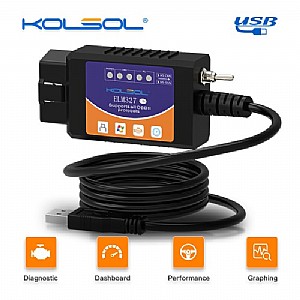

KOLSOL ELM327 USB V1.5 with Switch modified for Ford ELMconfig Forscan CH340+25K80 chip HS-CAN / MS-CAN
Highlights:
1. Support FORD models open hidden function.
2. MS-CAN support via toggle switch(MS-CAN / HS-CAN).
3. ELM327 USB has full support to Ford specific diagnostic protocol MS-CAN.
4. Majority of modern Ford modules are accessible only through this protocol.
6. Besides added functionality for Ford, this device works as normal OBD2/EOBD code reader on all supported vehicles.
Functions:
* Read/erase fault codes from all modules, including OBD2/EOBD
* Access modules on both HS-CAN and MS-CAN mode
* Read vehicle configuration
* Actuator tests
* Live Data
* Injector coding
* Software update
* Service program
* Force DPF regeneration
* Programming
* Coding
* Adaptation
Supported Software:
ELMconfig
Forscan
FOCCCUS
FF2
Vehicle Coverage:
The ELM327 USB V1.5 OBD2 scanner is compatible with FORD, MAZDA, BMW, VW, GM, AUDI, CHEVY, TOYOTA, , LEXUS, MERCEDES, HYUNDAI, KIA, MITSUBISHI,NISSAN, SUZUKI, JAGUAR, LAND ROVER, CHRYSLER, HONDA .And so much more!
Supported Protocols:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)
SAE J1939 CAN(29bit ID,250*Kbaud)
CAN(11*bit ID,125*Kbaud)
CAN(11*bit ID,50*Kbaud)
Package includes:
1PC x KOLSOL ELM327 USB OBD2 Scanner V1.5
1PC x CD-ROM
