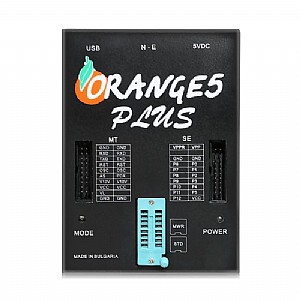

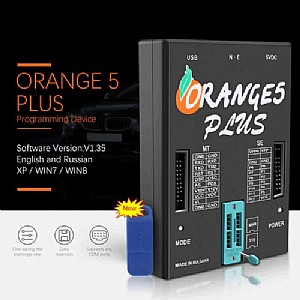

2020 OEM Orange5 Plus V1.35 Programmer With Full Adapter Enhanced Functions with USB Dongle
Notice:
1. Software Version: V1.35, Not Support Update.
2. With USB Dongle in Package, Good Quality and Work Stable
3. Language: English, Russian and Chinese
4. Operating Systems: XP WIN7
Orange5 Plus Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART

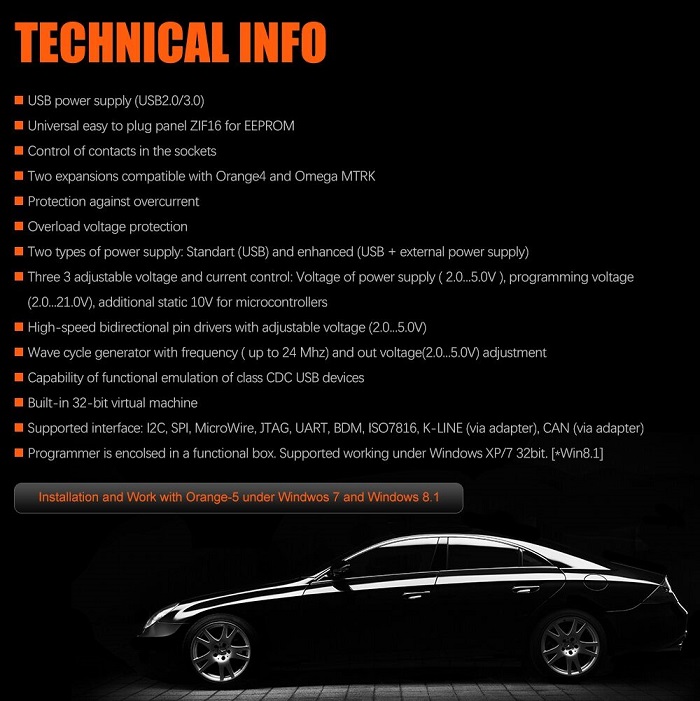

Orange5 Plus Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power
supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional
static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.

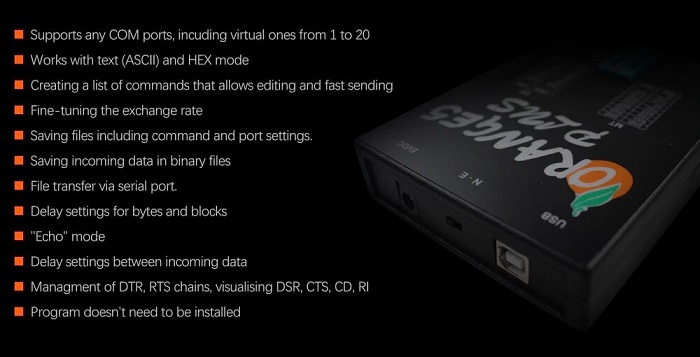

Orange5 Plus Feature:
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.

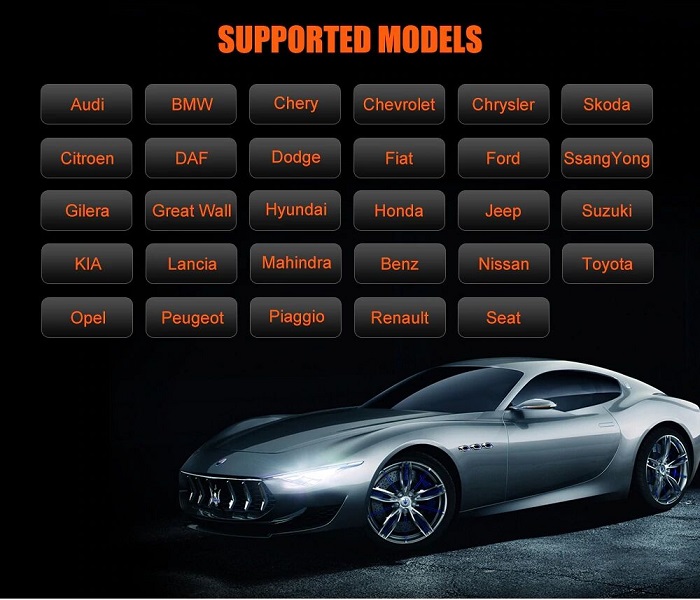

Orange5 Plus Vehicle List:

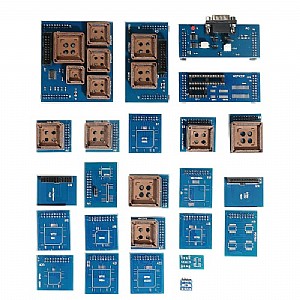

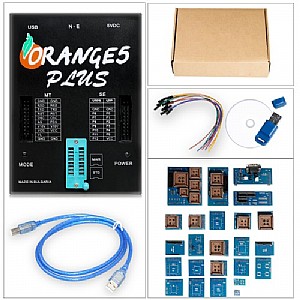

Orange5 Plus Package List:
Orange-5 programmer 1
Power adapter 1
USBcable 1
Incircuit wire 10
SOIC8/DIP8 Expert adapter 1
SOIC8/DIP8 adapter 1
SOIC8_14_93Cxx adapter 1
SSOP8/DIP8 1
Lead with clips SOIC8 & DIP8 1
Adapter 05L28/05B 1
Adapter 908AS60/AZ60 QFP64 1
Adapter 68HC(7)05P3/E6 1
Adapter 05B/X_705B/X QFP64 V2 1
Adapter 11PA8/11E9 QFP64 1
Adapter 68HC05H12 1
Adapter 68HC11EA9 1
Adapter 908AS60 1
Adapter 9S12Dxx 1
Adapter 912Dxx 1
Adapter 9S12X 1
Adapter 912B32 QFP80 1
Adapter 68HC11F1 1
Adapter 68HC11L6 1
Adapter 68HC11KA4 1
Lead 11E9(20) with power 1
Lead for EWS3 mask 0D46J 1
Adapter TMS374C003A 1
Adapter MSP430F 1
Adapter 68HC11KA4 PLCC68 1
Adapter 908JL 1
Adapter PCF7941 1
Adapter 9S12XE 1
