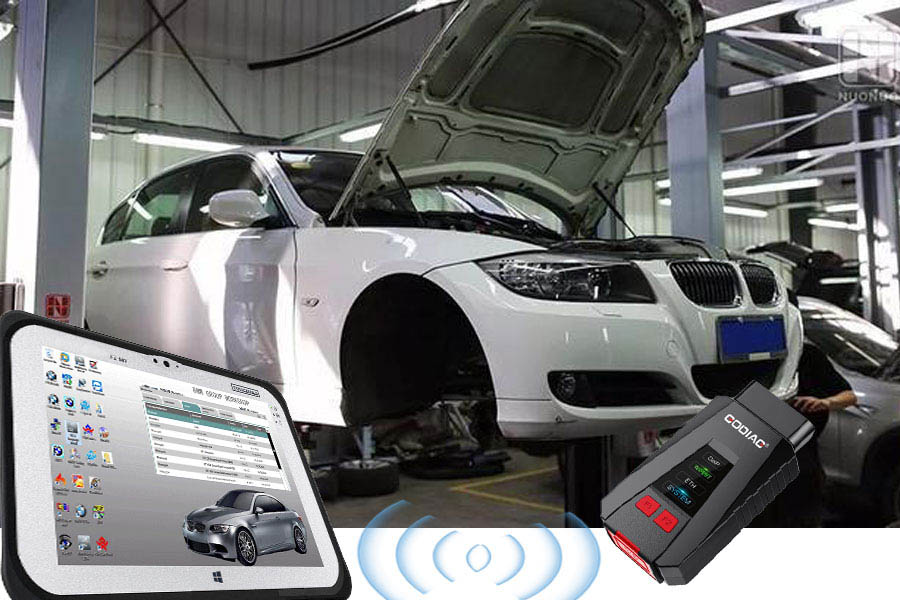

GODIAG V600 is a BMW professional diagnostic & programming / coding tool, it will replace GT1, OPS, OPPS, ICOM, ICOM A2, ICOM A3, ICOM NEXT. GODIAG V600-BM CAN-FD J2534 can access to all systems of newest BMW car models to quickly read / clear fault codes, read dynamic data stream, active test, activation, components replacement, ECU replacement and upgrading, personalized settings, ECU programming, retrofitting and upgrading car configuration, SCN Coding, transmission initialization, enable the hidden features etc.

Support OEM professional diagnostic function of all For BMW series:

1 series: 1'_E81/E81/E87/E88,1'_F20/F21
2 series: 2'_F22/F23,2'_F45/F46,2'_F87
3 series: 3'_E46,3'_E90/E91/E92/E93, 3'_F30/F31/F34/F35,3'_F80
4 series: 4'_F32/F33/F36,4'_F82/F83
5 series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 series: 6'_E63/E64,6'_F06/F12/F13
7 series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04, 7'_G11/G12
X series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71,
X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z series: Z4_E85/E86,Z4_E89
I series: I'_I01/I02
MINI:  MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60,  MINI_F55/F56

GODIAG V600 Features:

1. Contained with dedicated For BMW software (same as ICOM, ICOM A2 / A3 / NEXT etc, no need to install any driver.)

1) ISTA-D: used to read / erase fault codes, read the data flow, maintenance guidance, circuit diagram, wiring diagram and directly upgrade & program new models. It will activate the ignition switch without keys during diagnosis.

2). ISTA-P: an off-line programming and coding software system, including the latest database for programming E, F, G, K, I series models

3). Engineer programming & coding software for F series vehicles

4). WINKFP: engineer programming software for E series vehicles.
5). NCS-Expert Tool: engineer programming software for E series vehicles.

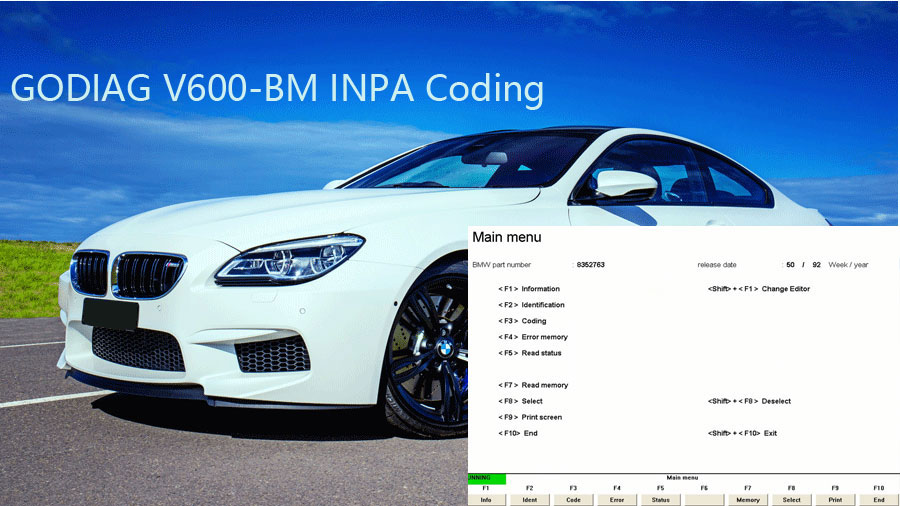

6). INPA: engineering diagnostic software for E series vehicles.

7). Tool32: engineer command execution software for E series vehicles.
8). For BMW Coding Tool: WINKFP NCS auxiliary software for importing engineer data for E series vehicles.

2. Provide a variety of communication modes:

USB 2.0
DoIP indicator
Ethernet 10/100Mbps
WIFI/BT 802.11 indicator  150Mbps
ETH indicator
System Indicator

3. Specifications

Suitable power: 7-32 V
About 300 mA when the power is 12V

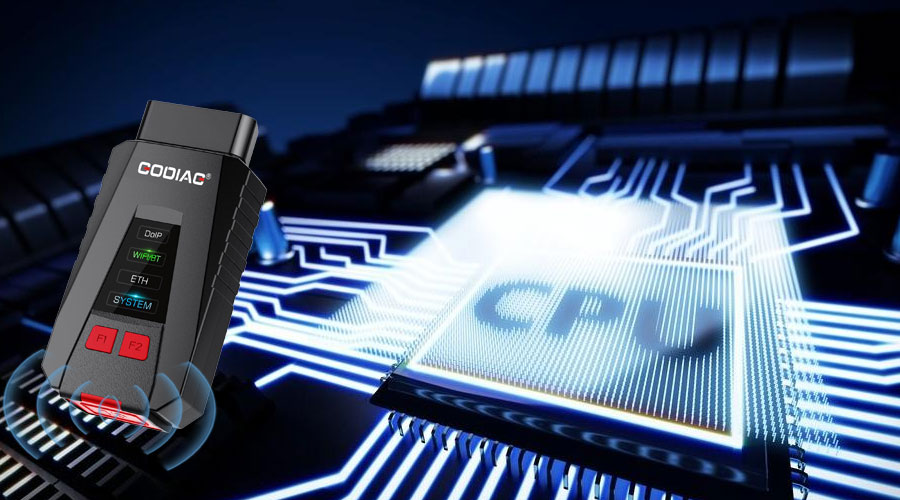

High-speed processor: CPU 580 MHz MIPS, 32MB FLASH,128MByte RA, Built-in 32G TF card(optional)

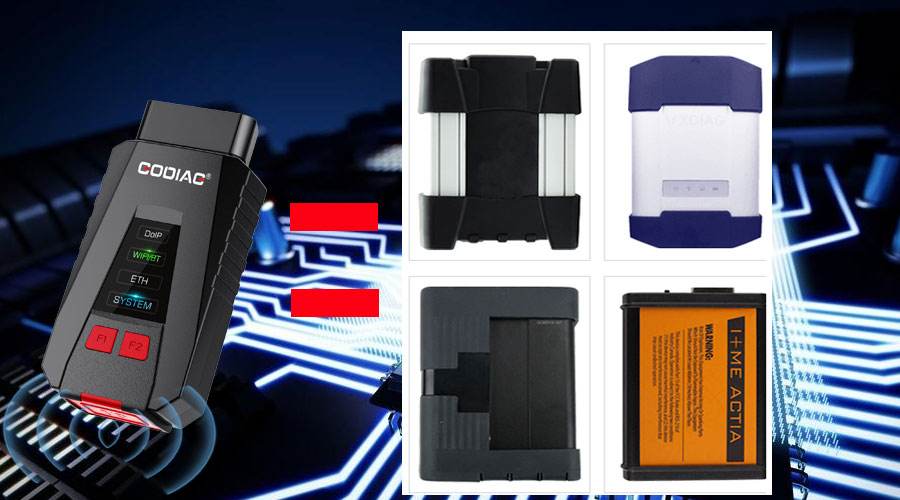

4. Replace any of these For BMW diagnostic tools: For BMW ICOM, ICOM A2 / A3 / Next etc.

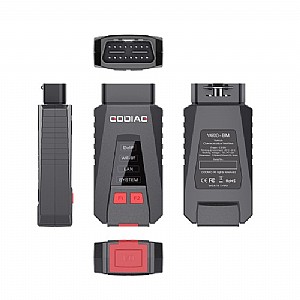

5. The Button Function:

F1-Press it for more than 3s to reset factory setting

F2-Press it to restart system

Godiag V600-BFirst Time Setup Guide:

1. Locate the registration slip included in the packaging.
Open carefully to reveal the device serial number and product key
These are required for first time setup your new V600-BM inteface

2. Download Godiag V600-BM firmware updater.

4. Extract the contents of the zip file to a folder.

5. Run the Godiag firmware updater by double clicking the file "STTech.AnyVCI.Updater.exe".

5. For first time users, register the device by entering your email, password of your choice, product serial number and product key in the required fields.
If you have already registered, you can login with your email and password.

7. On the main page you can select various options such as firmware update, license update and advanced settings.

8. Please follow our Godiag V600-BM online guides to update device firmware or update license.

9. The Godiag V600-BM is now ready to use and fully compatible with BMW standard tools.

10. We can also provide the latest BMW diagnostic software (ISTA+ & ISTA-P) on HDD or SSD

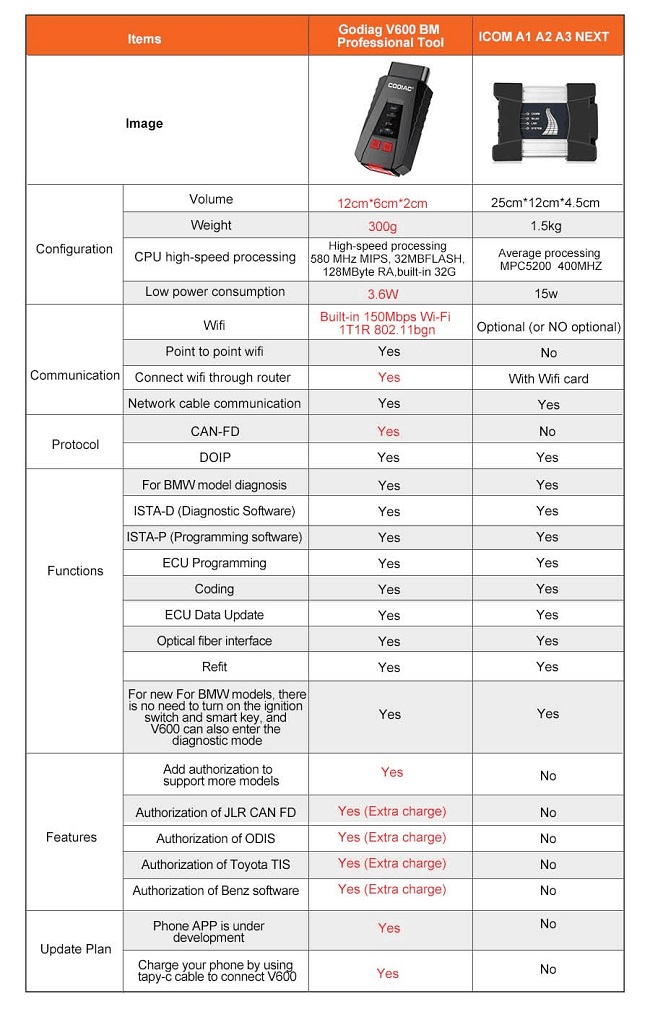

GODIAG V600-BM Parameters:


GODIAG V600-BM Package includes:

1pc x GODIAG V600-BM CAN-FD J2534
