GODIAG GD801 Programmer Support Key Programming/Mileage/ABS/EPB/TPMS/EEPROM etc Free Update Online
Only can send from oversea warehouse, pls contact with us to calculate
the shipping cost: carsung@hotmail.com

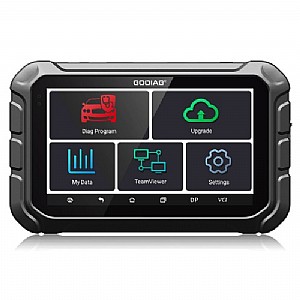

GODIAG GD801 is a new Android-based vehicle trouble diagnostic device
developed for Internet applications.It is characterized by covering wide
range of vehicles,featuring powerful function, and providing precise
result. Through vehicle diagnostic OBD connector and variant mobile
intelligent terminals, it achieves vehicle trouble diagnosis for full
car model and full system vehicle. Meanwhile, taking advantage of mobile
Internet, this device integrates more application and service, such as
Maintenance Database, remote assistant, One Key Upgrade etc.
1. Full Configuration: Immobilizer + odometer Adjustment
+ EEPROM/PIC Adapter + OBDII + ABS + Gear Learning + CVT Reset +
Battery Match + EPB + TPS + SRS Reset + Low Tire + Steering Angle Reset +
DPF Reset + Oil Nozzle Code.
2. Powerful Key Programming Function.
3. Diagnostic Function: Classify special function: ABS, EEPROM
Adapter,Battery match, CVT learning, EPB, Gear learning, Immobilizer,
TPMS (low tire) reset, Cluster calibrate,steering angle reset.
Specially designed for Android platform with clear and user-friendly interface.
4. Maintenance database: Equipped with powerful database.
5. One Key Upgrade: Built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade.
6. System setting: Set VCI formation, language, unit, data logging, user information etc.
7. Remote assistance: Achieve remote assistance by this function.
8. Support Multi-Languages: English, Italian, Spanish, French, Geman, Portuguese, Polish, Russian,etc.
9. Support Malaysian Proton Perodua with Extra Software License
Key Programming Functions:
Programming & Erase Keys
Programming Remote
Pincode Read
Key Numbers Read
EEPROM Chip Reading
OBDII Diagnosis
GODIAG GD801 IMMO Function List Free Download
Key Programming Highlights:
-Ford ESCAPE/ECOSPORTt/ESCORT/EVEREST/FIESTA etc supports up to
2018
-Renault CLIO/CAPTURE/DUSTER/KOLEOS etc supports up to
2015
-GM EQUINOX/MALIBU/TERRAIN supports to
2020
-GM CASCADA /ENCLAVE/REGAL/ESCALADE/CAMARO/IMPALA etc supports up to
2019
-Hyundai ACCENT/ELANTRA SEDAN/G90/GENESIS/KONA/SONATA etc supports up to 2019
-Landrover DISCOVERY 4/RANGE ROVER/RANGE ROVER EVOQUE supports up to 2015
-Volvo S60/V40/XC60 supports to 2017
-SUBARU ASCENT/CROSSTREK/FORESTER etc supports up to 2019
Mileage Correction Functions:
Read Odometer
Write Odometer
Read Flash
Write Flash
Read Eeprom
Write Eeprom
One-Click Upgrade
Wide Vehicle Coverage
GODIAG GD801 Mileage Correction Vehicle List Free Download
Mileage Correction Highlights:
-Chrysler 300C/PACIFICA/CHALLENGER/CHARGER/DURANGO/RAM etc supports up
to
2018
-Ford F250/F350/F450/F550/FIGO/ASPIRE/KA supports up to
2018
-Renault CAPTUR/CLIO/TRAFIC IV supports up to
2017
-GM TRAILBLAZER supports up to
2019
-GM ESCALADE / XTS / COLORADO supports up to
2018
-Support part of Bentley/Maseratti/Porsche mileage correction
GODIAG GD801 Technical Parameter:
● Operation system: Android 5.1.1
● CPU: RK3128 Quad-Core，ARM Cortex A7@1.2Ghz
● Battery: 3800mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Memory capacity: 16GB
● LCD: 7.0 inches
● LCD resolution: 800*480
● Touch screen: Capacitive touch screen
● Wi-Fi: supported
● Working temperature: -20℃~55℃（14℉~131℉）● Storage temperature: -20℃~70℃（-4℉~158℉）
● Weight: about 850g
● Dimension: 214*133*28 mm
GODIAG GD801 Functions List:
| GD801 FUNCTION |
| OIL/SERVICE RESET |
RESET |
√ |
| OBDⅡ |
OBDII Engine |
√ |
| KEY PROGRAMMING |
BMW |
√ |
| PORSCHE |
√ |
| BAIC |
√ |
| BENZ |
√ |
| BORGWARD |
√ |
| HONDA/ACURA |
√ |
| CITROEN/PEUGEOT |
√ |
| BYD |
√ |
| CHANGAN |
√ |
| GREATWALL |
√ |
| CHANGFENG |
√ |
| CHANGHE |
√ |
| VW/SEAT/SKODA/AUDI |
√ |
| DFFENGSHEN |
√ |
| DFLIUZHOU |
√ |
| SOUEAST |
√ |
| FIAT |
√ |
| TOYOTA |
√ |
| FOTON |
√ |
| FORD |
√ |
| HIMIKO |
√ |
| TRUMPCHI |
√ |
| HAFEI |
√ |
| HNMAZDA |
√ |
| BRILLIANCE |
√ |
| HAWTAI |
√ |
| JAC |
√ |
| JAGUAR |
√ |
| GEELY |
√ |
| CHRYSLER/DODGE/JEEP |
√ |
| RENAULT |
√ |
| DACIA |
√ |
| LIFAN |
√ |
| SUZUKIT |
√ |
| LUFENG |
√ |
| LANDROVER |
√ |
| MAZDA |
√ |
| LUXGEN |
√ |
| OPEL |
√ |
| QNLOTUS |
√ |
| CHERY |
√ |
| KIA |
√ |
| NISSAN/INFINITI |
√ |
| ROEWE |
√ |
| MITSUBISHI |
√ |
| MAXUS |
√ |
| SSANGYONG |
√ |
| SUBARU |
√ |
| SMART |
√ |
| TJFAW |
√ |
| GM |
√ |
| SGMW |
√ |
| ISUZU |
√ |
| HYUNDAI |
√ |
| BESTURN |
√ |
| HONGQI |
√ |
| IVECO |
√ |
| ZZMAZDA |
√ |
| ZZNISSAN |
√ |
| ZOTYE |
√ |
| JMC |
√ |
| VOLVO |
√ |
| XENIA |
√ |
| ZHONGXING |
√ |
| DAEWOO |
√ |
| MILEAGE CORRECTION |
VWH |
√ |
| SKODA |
√ |
| AUDI |
√ |
| SEAT |
√ |
| PORSCHE |
√ |
| BENTLEY |
√ |
| FORD |
√ |
| CHRYSLER |
√ |
| GM |
√ |
| HYUNDAI |
√ |
| INFINITE |
√ |
| KIA |
√ |
| MAZDA |
√ |
| MITSUBISHI |
√ |
| NISSAN |
√ |
| SSANGYONG |
√ |
| SUBARU |
√ |
| SUZUKI |
√ |
| GREATWALL |
√ |
| GEELY |
√ |
| FIAT |
√ |
| CITROEN |
√ |
| BESTURN |
√ |
| LANDROVER |
√ |
| JAGUAR |
√ |
| RENAULT |
√ |
| PROTON |
√ |
| PEUGEOT |
√ |
| OPEL |
√ |
| VOLVO |
√ |
| SMART |
√ |
| TOYOTA/LEXUS |
√ |
| SMASERATI |
√ |
| IVECO |
√ |
| Special Functions |
ABS BLEED |
√ |
| GEAR LEARNING |
√ |
| CVT RESET |
√ |
| BATTERY MATCH |
√ |
| EPB |
√ |
| TPS |
√ |
| RESET SRS |
√ |
| LOW TIRE |
√ |
| STEERING ANGLE RESET |
√ |
| RESET DPF |
√ |
| OIL NOZZLE CODE |
√ |
| SUS RESET |
√ |

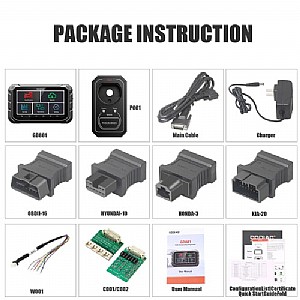

Package List:
1. GODIAG GD801 PAD
2. Main Wire
3. 12V2A DC Charger
4. KIA-20
5. OBD II-16 Connector
6. HONDA-3
7. HYUNDAI/KIA-10
8. P001 Programmer Unit
9. C001/C002 Circuit Board
10. W001
11. Configuration List/Certificate/Quick Start Guide Fold
