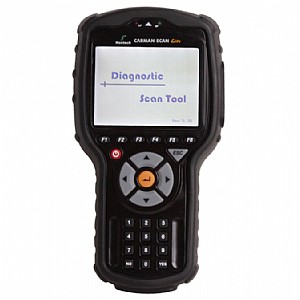

OEM Carman Scan Lite For Hyundai/Kia Especially for Korea Car
1. Language: English
2. No need to connect with computer
3. Vehicle Coverage: Hyundai/Kia for Korean, Japanese, European, American, Malaysian, Chinese, Australian and Latin American Locals
Carman Scan Lite Carman Scan Light designed as a compact, robust tool for use in the workshop, We design the SDK (Software Development Kit) for overseas business partnersdevelopment. Without deep knowledge of our hardware and software logic, most of foreign engineers can integrate their having ECU data and develop new scan test software easily.
1. Communication Protocol Compatibility
ISO 9141-2, ISO-14230,
SAE J1850 (PWM, VPW) ,
KWP2000
CAN BUS Communication support
2. Hyundai/Kia Extensive Vehicle Coverage
Korean, Japanese, European, American cars
Malaysian, Chinese, Australian and Latin American locals
3. User Interface
Compact Size: 100 X 150 X 25 mm (4"X 6" X 1")
LED indication of communication status: Tx / Rx
4. Sufficient Memory Capacity
Main Memory: 32MB built-in (Extended up to 128MB)
No external memory is required
Enough to contain extensive supplements
5. Eligibility for Strategic Cooperation with Other Firms
Provision of Open Platform Hardware
Provision of Software after the SDK development
Development of programming and coding tools
Enables faster development by multiple groups
Functionality
On board diagnostic communication
Special vehicle test emulation
The combination provides for easy and comprehensive diagnosis of the electronically
Controlled systems used across the aftermarket model range.
Diagnostic communication with all Hyundai and Kia electronic control systems
Diagnostic communication with Japanese, European, U. S. A. vehicles
OBD-II communication protocol support
Actuator driving function with predefined frequency and duty ratio
High resolution LCD display
Easy and soft touch key
Visual lamp of communication state
Bright screen (Auto backlight)
available in english and French languages.
On-line support for diagnostic trouble code or current data operations
On-line"HELP"key operating support
Built-in main memory (32MB)
Secondary large memory card for s / w update and information storage
PC communication facility
USB support (PC connection etc.)
Compact design
Easy to carry
Technical Data of Components
Case
Bright blue color
High strength ABS material
LCD spec
320 by 240 resolution
EL backlight (Blue green)
Standard character output: 40 columns 12 lines
Keypad
Power ON / OFF key
Soft functional 6 keys
Arrow 4 keys
Enter and ESC each 1 key
Type: soft touch keypad
Memory capacity
Operationg Voltage
8 ~ 36 VDC input
Operating Temperature
0~ 50
DLC Communication Part
The following protocols can be implemented for applications,
Hyundai and kia vehicle all system
Korea domestic vehicle all system
OBD-II (ISO 9142-2)
OBD-II (SAE-J1850 VPW, PWM)
KWP-2000
CAN
SAE-J1587 for commercial vehicle
