Introduction

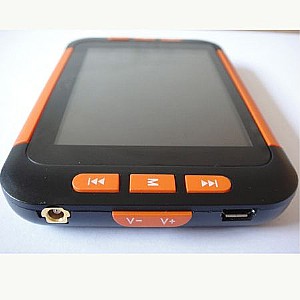

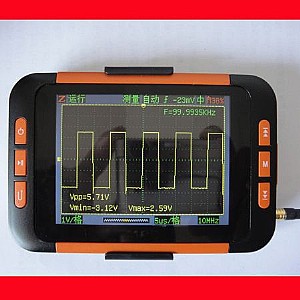

QDso is equipped with 3.5-inch TFT, 1000mA lithium battery, real-time sampling rate of 200M, 40M bandwidth Pocket handheld oscilloscope.
Hardware specification
|
Input
|
|
|
Max sample
|
200MS/s
|
|
Channels
|
1
|
|
Bandwidth
|
40MHz analog bandwidth
|
|
Vertical resolution
|
8bit
|
|
Gain range
|
10mV-5V; -5V~+5V（probe X1）（10mV-10V, 1,2,5 step）
100mV-50V; -50V~+50V（probe X10）
|
|
DC accuracy
|
+/-3%
|
|
Impedance
|
1MΩ 25pF
|
|
Coupling
|
DC
|
|
Display Mode
|
Y-T
|
|
Input Protection
|
Diode，50Vpk
|
|
Timebase
|
|
|
Timebase range
|
1ns~100ms (1,2,5 step)
|
|
Buffer Size
|
4K
|
|
Trigger
|
|
|
Mode
|
Auto、Normal and Signal
|
|
Type
|
No、Rising edge、Falling edge and edge
|
|
Autoset
|
Yes
|
|
Level
|
Yes
|
|
Math
|
|
|
measurements
|
Vmin、Vmax、Vpp、Vrms and Frequence
|
|
Cursor
|
Max 2
|
|
Physical
|
|
|
Display
|
3.5inch 24Bit true color TFT 320*240
|
|
Battery
|
1000mA lithium battery(About 2 hours of continuous work)
|
|

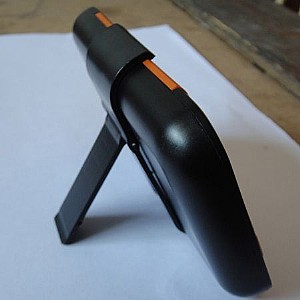

Dimensions
|
110*75*13(mm)
|
