ALLSCANNER is the latest automotive diagnostic tool. It was designed by the new international standard, it can identify different vehicles intelligently, and it can support all vehicles in the market.
Software model: Honda, Toyota
ALLSCANNER TOYOTA ITS3 Tool Without Bluetooth Version
This version do not have bluetooth.
Deion:
VCX is the latest diagnostic software platform of ALLScanner, be used with hardware of VCX ,the characters be shown as below:
Diagnostic software can be operated under WinCE and Windows, available installation for Laptop or PDA.
Automotive Diagnostic language (VDL) exploitation platform based on XML by self-determination and high efficiency
database management system, these will make it easily to explore the vehicles.
Special Function for optional
1. Support diagnostic software of TOYOTA TIS Techstream to realize same function as that.
2. Support diagnostic software of HONDA HDS,On developing.
Attention: ALLSCANNER ITS3 now have software for honda and toyota. Other software still in developing.
Specification:
1.Item State
CPU 16 digit Dual Cell specialize CPU
RAM 64KB RAM
FLASH 256KB FALSH
Diagnostic Port 24PIN, self-determination design
Wireless Port 802.11b/g WIFI wireless
LED 4 LED indicator light,indicate power and status.
Power DC 9V-28V
Consumption 3W
Size 156(L)x86(W)x35(H)mm
Working Temperature -20°C~70 °C
Storage Temperature -40°C~85 °C
2.Product Feature
1) Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles protocols.
2) Use standard 802.11b/g WIFI wireless,connect easy to network, or connect to Laptop to realize wireless diagnosis.
3) Diagnostic software accord with international standard, collocate communication port flexibly, less connectors
4) Self-determination design for connectors and cables.
5) Hardware accord with CE and FCC standard.
6) Support almost all vehicles socket.
3. Optional Information
- HS Code : 8708 Parts and Accessories of the Motor Vehicles
- Payment : PayPal
- Delivery : 3working days
- Origin : China
- Minimum Order :1set
- Samples : Charge

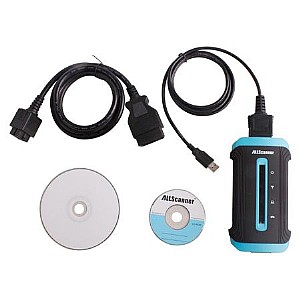

Package Including:
VCX Diagnostic box, the communicate bridge between mainunit and vehicles.
Connector Connect to vehicle diagnostic socket.
Wire connect RS232 serial port,115200bps
CD Driver
