Black PCB, not green
Features
- Easy to use DOS, Windows 95/98/NT/2000/XP software
- Onboard processor
- Device selection by 4 jumpers
- 2 color LEDs indicates mode of operation, security condition (check option available without PC)
- LPT port self-check function on a board

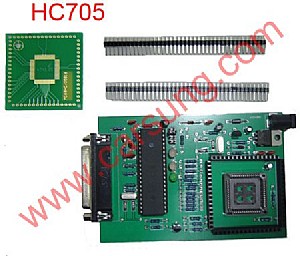

- 52PLCC PGA socket on a board and additional adaptor for 64QFP device in complete
Supported Devices
MC68HC705B16
MC68HC705B32
MC68HC705X16
MC68HC705X32
MC68HC05B68
MC68HC05B616
MC68HC05B632
MC68HC05X16
MC68HC05X32
Package Included
one 705 programmer
one MC68HC705B16 QFP-64
Additional items you'll need to use this tool
- Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
- Power supply: An 12 Volt / 500MA power adapter.
Note: You may purchase a 12V power adapter in this site if you like.
CAUTION!
On the D53J mask set (MC68HC05X32), DIV10 is forced in bootstrap mode. So 20 MHz Crystal must be used with this device.
