Allscanner Bluetooth VCM VCX-Nano scanner for Ford,Mazda,LandRover and Jaguar

Bluetooth Wireless AllScanner VCX-Nano accord with standard of SAE-J2534(Pass-thru), connected with computer through high speed USB2.0 and bluetooth to be compatible with most of vehicle’s communication protocols. It will be used widely by car manufactures to make ECU online diagnosis and reprogramming .
It also supports the third party and OEM original diagnostic software.

Specification:

Place of Origin: Guangdong, China (Mainland)

PC Interface:

Support USB2.0 HIGH SPEED CONNECTION.

Support Bluetooth2.0 wireless connection.

Provide PC configuration tool,detect connection automatically,update fireware automatically.

Vehicle Interface:

1. Hardware integrated as J-1962 OBD-II connector , connect with vehicles without cable.

2. Support the following protocols:

   1) ISO9141(K-Line)

   2) ISO14230-2(K-Line)

   3) ISO15765(CAN)

   4) SALE-J1850PWM(Ford SCP)

   5) SALE-J1850 VPW(GM Class2)

   6) Single Wire CAN(GMLAN)

3. Support 3 wire CAN, 2 wire High CAN and Single wire CAN.

4. Programming voltage: 5v-20v  FEPs output.

5.  Support multi-channels work continuously , for example: 2 wire CAN or K-Line work at same time.

6. Large memory to increase date throughput, 32KByte can be reached by single transfer.


Accord with SAE-J2534

Fully compatible with SAE-J2534-1 & SAE-J2534-2.

Online ECU diagnosis and reprogramming.The same as the original tool.

High comparision of price and function,repeat to use,support with third party and OEM diagnostic application which was compatible with J2534.

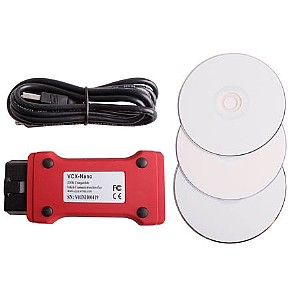

Package including:


1pc x VCX Nano vehicle communication interface

1pc x Mini-USB cable

1pc x VCX Nano Driver Disk

1pc x VCX Nano User’s manual

1pc x Package box
