1, Older BMW (1996...2004) E38 E39 E46 E53 E83 and similar where direct connection to AIRBAG ECU take places. NOT working where seat modules are connected directly t o K-BUS.

OCCUPIED:

Jumper 2 SHORTED

Jumper 1 SHORTED

NOT OCCUPIED:

Jumper 2 SHORTED

2, Mercedes Benz (1997 2001) TRW Airbag unit A-class W168, C-class W202, Vito W638, ML etc.

OCCUPIED:

Jumper 3 SHORTED

Jumper 1 SHORTED

NOT OCCUPIED:

Jumper 3 SHORTED

3, Mercedes Benz (2000 2004) A-class W168, C-class W203, CLK W209, Vaneo, E-class W210, Sclass W220, Vito W639, ML W163 etc.

OCCUPIED:

Jumper 4 SHORTED

Jumper 1 SHORTED

NOT OCCUPIED:

Jumper 4 SHORTED

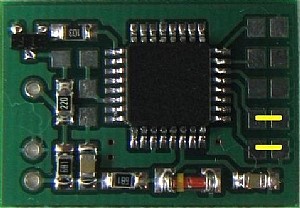

By default device is shipped in mode BMW, OCCUPIED as pictured:
