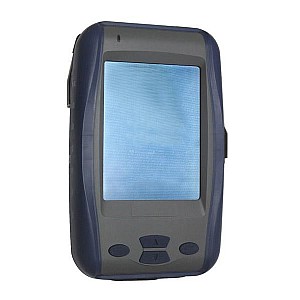

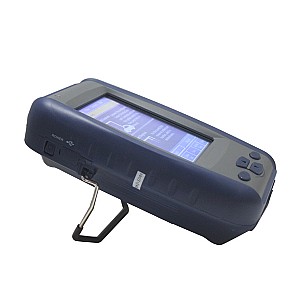

Denso Intelligent Tester IT2 for Toyota and Suzuki with Oscilloscope

1. Software Version: 2017.1
2. Supported Languages: English/ German/ French/ Spanish/ Italian/ Chinese
3. Update By Card
4. Support Vehicle: Toyota and North America Area Suzuki

Notice:
Computer System Requires: Windows XP system

Denso IT2 Function:

1. All type of Toyota(made after 1996) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.
2. CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
3. Easy operation on LCE display with touch panel 5.7 inch full color display with touch panel assists an easier operation
4. Voltmeter and Oscilloscope not only communication basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
5. Data recording to your PC saved data such as data-list can be downloaded to your pc

Denso IT2 Specification:

1. Feature
Source voltage DC 10-32V
Power consumption normail:7w(12VDC) charging:10w(12VDC)
Operation temp: 0~45°C
Storage temp: -10~ 60°C
LCD Display 5.7 inch
Touch panel input: by finger or stylus pen
Key four(up, down, two function keys)
Built-in clock for a time stamp
PC communication PC card slot CF x 1ch
USB Host: 1ch function:1 ch
Serial 1ch ( RS-232C)
Vehicle communication CAN, ISO9141
Back up power supply lithium-ion battery 7.4v 1000mAH

2. Character
1.Touchscreen & back lighting control
2.Easy & quick
3. User needn't worry about the after service since factory has an open patio for maintenance.

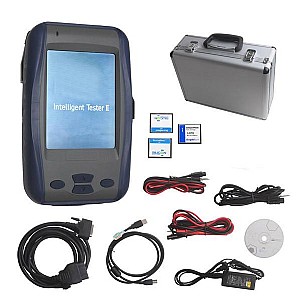

Denso IT2 Package List:

1. Mainframe -- 1pc
2. OBD-II -- 1pc
3. Charging line -- 1pc
4. Lin line -- 1pc
5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc
7. Card--3pcs(V2017.1 Toyota, V2017.1 Suzuki Card and Blank Card for Backup)

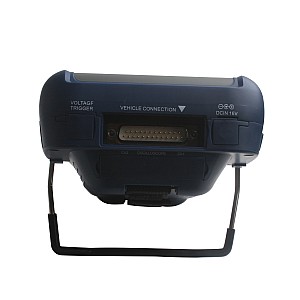

Denso Intelligent Tester IT2 Names of the Parts:

The names of the Intelligent Tester II parts are as follows.

After Service:

1. Guarantee: one year, from the date equipment arrival
2. Upgrade free for one year
3. Upgrade method: CD

FAQ:

Q1: is Toyota Denso Intelligent Tester IT2 with CF card?
A1:yes, Toyota IT2 is with CF card, there is a CF card slot at the back of Toyota IT2 main unit. When you use the main unit, please do not take it off, CF card is used to store the tested result. Please refer "Toyota ITS2 Names of the Parts".

Q2:Is this new Denso Intelligent Tester IT2 and with the oscilloscope too?
A2: Yes, it is with  oscilloscope .

Q3: Can i use this product to do airbag coding?
A3: Yes,you can.It can do airbag coding and simple ecu programming.

Q: How many pieces of card in the package of Denso Intelligent Tester IT2?
A: There are 3pcs of cards: Toyota card, Suzuki card and one blank card for backup, as for the software version, please pay attention to our newest notice.

Q: Does TOYOTA IT2 have touch-screen calibration?
A: yes, it has. The touch-screen calibration is optional in the menu bar.

Q: Which tool can make key and program ECU for Toyota 2010-2012?
A: Advice you use Allscanner IT3, Toyota IT2 and X-VCI Toyota.

Q: Can Toyota intelligent tester IT2 read smart key information?
A: Toyota it2 can program key but can’t read smart key information.
