Lost cost, high performance pass-thru diagnostic tool for use with PC
Simple packaging with electronics contained inside the cable
J2534 and J2534-1 compliant device driver
Commercial Range (0 to +70° C)
Dimensions: 3″ x 1.75″
Cable length: 6 feet
Operating Voltage: Bus-powered by USB
Mongoose VPW supports GM TIS, SPS, TIS2WEB, and DPS flash reprogramming software
Mongoose is a low-cost, high-performance vehicle network interface that connects a laptop directly to the OBD-II connector.
Bus Protocols
Mangoose VPW CAN/ISO 15765/GMLAN
GM Class2 (J1850VPW)
Mangoose PWM CAN/(ISO 15765
J1850PWM
Mangoose ISO CAN/ISO 15765
KWP2000 (ISO9141 / ISO14230)
Software Options:
The DrewTech Mongoose is a USB pass-thru device that utilizes the SAE J2534-1 API. What this means is that the Mangoose uses a standard communications interface to the vehicle, allowing it to work with 3rd party diagnostic applications. Different diagnostics and data logging applications supported are currently supported by the Mongoose, with more being added all of the time.
The package includes:

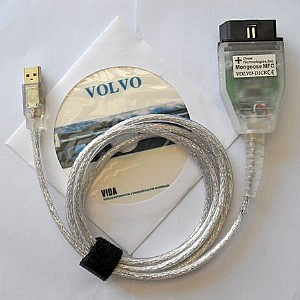

Mongoose vehicle interface
Installation CD with device driver (J2534 compatible)
The Mongoose includes a J2534 driver and delivers full-speed (12mps) USB 2.0 performance.
