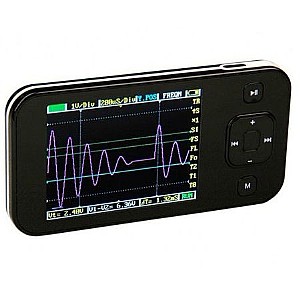

DSO0201is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It is base on ARMCortex?-M3compatible 32 bit platform, equipped with 320*240 color display, SD card capability, USB connection, and chargeable batteries. Weighs only 60g!Portable Digital Oscilloscope DIY Kit provides waveform viewing, pocket size and over 2 hoursbatteryoperation. This DIY kit is aopen source code. The Schematic, PCB layout and program code is free for re-design. It is ideal for production test, research, design and education.
Specification
Display 2.8″ Color TFT LCD
Display Resolution 320×240
Display Color 65K
Analog bandwidth 0 - 1MHz
Max sample rate 1Msps 12Bits
Sample memory depth 4096 Point
Horizontal sensitivity 1uS/Div～10S/Div (1-2-5 Step)
Horizontal position adjustable with indicator
Vertical sensitivity 10mV/Div～10V/Div (with ×1 probe)
0.5V/Div～10V/Div (with ×10 probe)
Vertical position adjustable with indicator
Input impedance >500KΩ
Max input voltage 80Vpp (by ×1 probe)
Coupling DC
Trig modes Auto, Norma, Single, None and Scan
Functionalities: Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
Precise vertical measurement with markers
Precise horizontal measurement with markers
Rising/falling edge trigger
Trig level adjustable with indicator
Trig sensitivity adjustable with indicator
Hold/run feature
Test signal Built-in 10Hz～1MHz (1-2-5 Step)
Waveform storage SD card
PC connection via USB as SD card reader
Upgrade by bootloader via USB
Power supply 3.7V Chargeable Lithium battery / USB
Dimension (w/o probe) 105mm X 53mm X 8mm
Pc connection: Mini USB B-Type
Setup your SD card for first time usage:
1. Format SD card with FAT16
2. Download Datafile
3. Decompress it, and copy to the root folder of SD card.
Package list:
DSO201 body x 1
3.7v lithium battery with connector x 1
Back plate x 1
Probe x 1
