High Quality JLR VCI Jaguar and Land Rover Diagnostic Tool JLR has chosen Diagnostic Associates to provide them with an enhanced DAVINA that has extra hardware and software capabilities. This will be known as the JLR VCI.
Software version: V145/V148 Note: SDD V145 is packed in the CD and V148 is available to download by browsing the provided link. SDD V148 is much larger to download.
SDD Diagnostics Program Features:
SDD diagnostic program supports full factory diagnostics and reprogramming JLR Dealerships use it as the factory diagnostics tool New VCI for the JLR SDD System
Overview:
Jaguar Land Rover approved device Replacement for JLR SDD VCI's Covers CAN, MultiCAN, ISO9141 and SCP Vehicle Networks Suitable for legacy, current and future vehicles Packed with standard 2m USB cable Easy to update for j2534 new functionality Function:
Using integrated circuitry, the JLR VCI has a variety of functions including: reading and clearing Diagnostic Trouble Codes; running active and utility tests; data monitoring and reprogramming. Connectivity and communication:
Plug the JLR VCI to the vehicles OBDII connector and connect it to the laptop via a USB cable. Once the J2534 DLL files are loaded, JLR VCI will allow you to operate JLR SDD. What does the JLR VCI do?
The JLR VCI connects directly to the vehicle OBDII (Diagnostic) connector, it then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device. How does the JLR VCI operate in J2534 Mode?

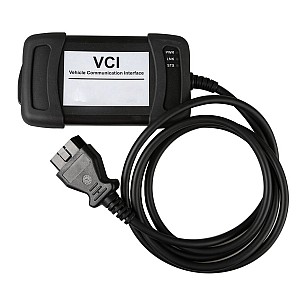

The JLR VCI is simple and easy to use. JLR SDD DVD 145 or V148 is optional to install. Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle). Connect the 2m USB cable to the JLR VCI and the other end to the SDD Laptop. The (PWR) LED will turn solid red to show the JLR VCI is powered. During communication with the vehicle the Status (STS) LED will flash green. How does the JLR VCI get updated for future Software Updates?
Periodically JLR will release updates to its products’ drivers and software. These updates are necessary to either release further device functionality or to resolve field issues. The updating of the drivers and software is handled by the diagnostic test application which will install the updates on request. If problems are experienced during device use, always make sure that the latest device software and drivers have been installed. The JLR VCI is suitable for use with all JLR vehicle models with the following exceptions:
Flash programming of Engine Control Modules (ECMs) on XJS and pre-2003 XJ and XK models (AJ16, AJ26, AJ27 engines). Simultaneous logging of ECM and TCM datalogger signals on 2006my Range Rover TAG: Land Rover SDDLand Rover diagnostic

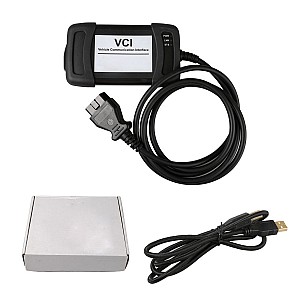

Package Includes: 1pc x JLR VCI Jaguar and Land Rover Diagnostics Tool V145/V148 version
