PC Software: Release soon.

BMW: CAS4/FEM/BDC/16ODOWT
Solder-free programming Data safety

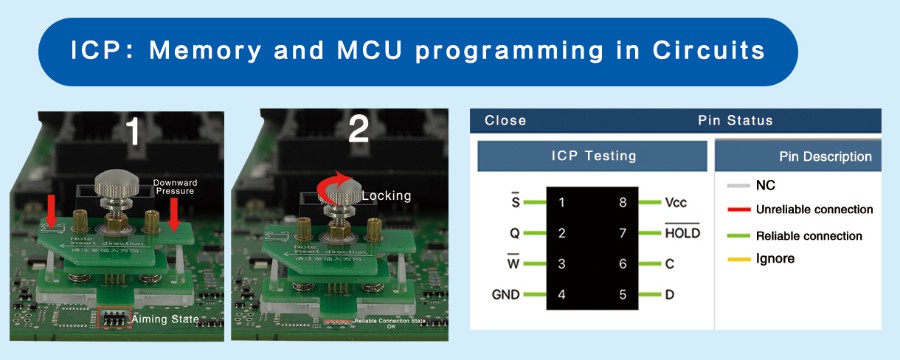

ICP: Memory and MCU programming In Circuits

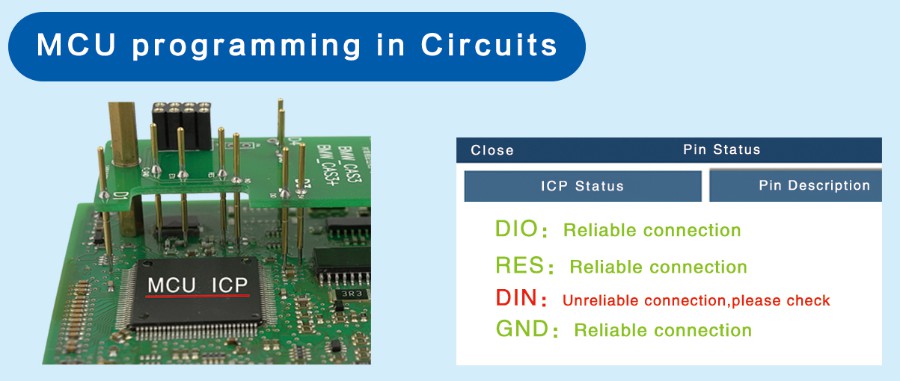

MCU programming in Circuits

Yanhua Mini ACDP Functions

1. Memory programming:
Support 93/24/25/35/95 series EEPROM in circuit (ICP)and on board(OBP)programming and parts of Freescale/ NEC MCU in circuit programming(ICP).

2. BMW module programming:
(1) Support cas1-cas4+and FEM/BDC IMMO key programming, mileage reset, program recovery.
(2)BMW engine ECU data reading and ISN code reading

3. VW module programming. MMC instrument
4. Instrument mileage and airbag ECU reset/maintenance is under development.
5. BENZ. BMW Audi and various models are upgraded successively

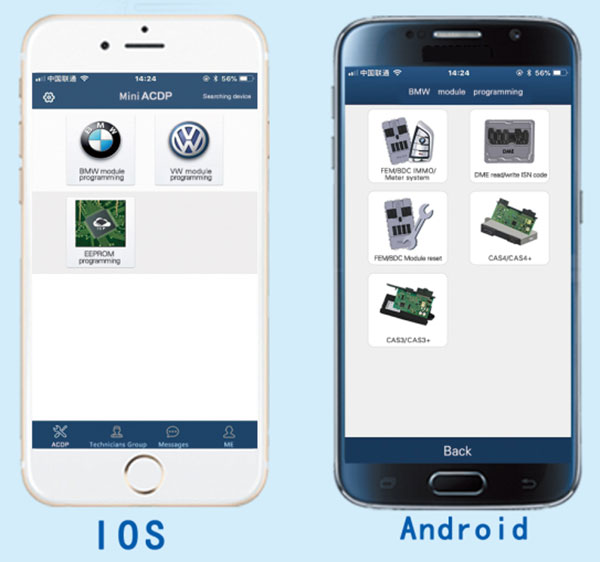

Install ACDP App from App Store:

WIFI Free connection

1. Overturn the traditional work mode, single operation is changed to team cooperation
2. Change of operation mode, PC operation is changed to mobile phone operation
3. Change of test connection mode, electric soldering iron is changed to no-solder dedicated connector
4. Change from artificial observation to intelligent monitoring Artificial observation / trying is changed to automatic detection algorithm, grap hical in dication the relability of connection.
Ensure the data is not damayed and lost
5. Change of service mode: Offline service is changed to online synchronous service

A game changer for BMW Key Programming

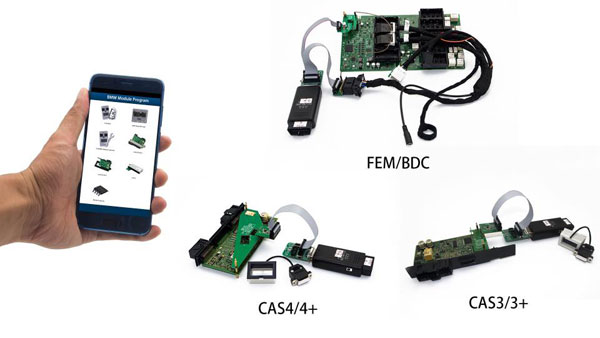

1. CAS4/CAS4+ Key Programming Without Soldering or removing component.
2. FEM/BD.C Key Programming without Soldering/Welding

3. Read ISN Code from OBD Port directly(Partially)

BMW CAS-CAS3+ Key Programming by OBD (Function Included Already, no need to pay more):
Read CAS EEPROM
Add Keys
Reset Mileage
Back up or recover CAS
All keys Lost

BMW CAS4/CAS4+ (Function Included Already, no need to pay more):
Read CAS4 EEPROM without soldering/welding
Add Keys without soldering/welding
Reset Mileage without soldering/welding
Back up or recover CAS without soldering/welding
All keys Lost without soldering/welding

FEM/BDC (Function Included Already, no need to pay more):
All keys lost without soldering/welding
Add keys without soldering/welding
Delete Keys without soldering/welding
Enable/Disable keys without soldering/welding
Read Key ID
Repair/Replace FEM Module without soldering/welding
Reset Mileage without soldering/welding

Read and Write ISN Code (Function Included Already, no need to pay more):
N20(mevd1724, mevd172P, mevd1729), N13(mevd1725, ), N55(mevd172, mevd1726, mevd172G, mevd172S, MEVD17, ), MSV80, MSD81, MSD85, MSD85HY, MSD87, MSV90, MEVD1728(s63), mev1722, med172, mevd1727, dde701_edc17c50, BMSX….

BMW 35080, 35160DO WT Read & Write (Function Included Already, no need to pay more)
Read and write BMW M35080, 35160DO WT etc EEPROM

Fujitsu CPU MB91F Read & Write Module (Function Included Already, no need to pay more)
Supports Honda FIT, Vezel, Fifth generation Hyundai Sonata, Kia K3/K5 etc Fujitsu CPU MB91F series read & write function.

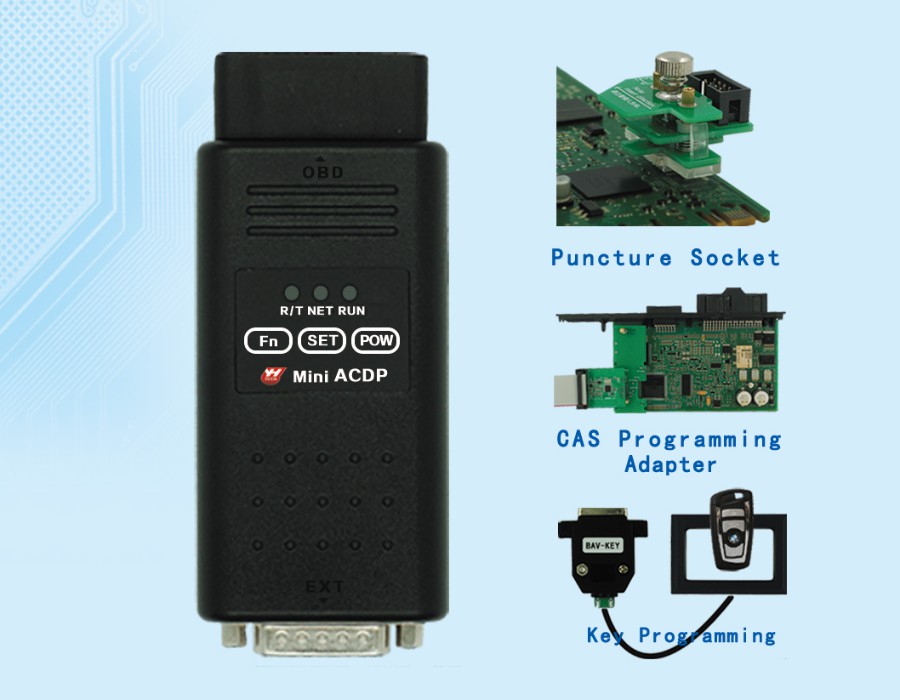

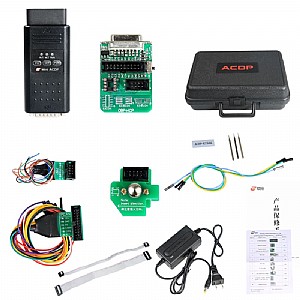

 Yanhua Mini ACDP Master Package List:
1pc x ACDP Programmer Master
1pc x OBP+ICP adapter
1pc x Puncture socket
1pc x P8P ribbon cable
1pc x 8P cable
1pc x 20P cable
1pc x P CAN cable set
1pc x 12V power adapter
3pcs x paint surface cleaning needles (1.0mm,0.8mm,0.5mm)

(BMW IMMO & Odometer Module)

(BMW FEM/BDC Module)

(Read & Write BMW DME ISN Code)

1pc x BMW-N13 port board

(BMW 35080, 35160DO WT EEPROM Read & Write)

1pc x Yanhua Mini ACDP Programming Master BMW 35080 & 35160DO Adapter

(Fujitsu CPU MB91F Read & Write Authorization)
