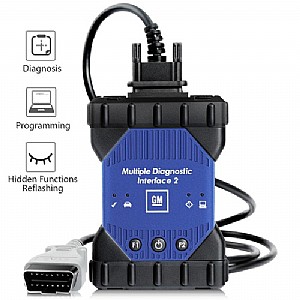

GM MDI 2 Multiple Diagnostic Interface with Wifi Card
If you want MDI2 without Wifi card, pls click here
GM MDI 2 Deion:
The Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems. The MDI 2 is designed to connect the vehicle to a host PC computer application, which then functions through the MDI 2 for data transfer and Electronic Control Unit (ECU) reprogramming.
The newest pc-based GM Multiple Diagnostic Interface (MDI 2) offers increased processing power, security, and faster programming speeds on Global A and future
Global B vehicles.
The MDI 2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool, and Tech2Win. It also supports Pass-Thru programming applications: TIS2Web–SPS. It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on current GM models. The MDI 2 is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by means of the J1962 connector using a DLC cable. Connection between the MDI 2 and the PC can be accomplished via standalone (USB) and the dealership network (CAT5).
GM MDI 2 Features:
● Uses a new, more secure Type B connector and Ground Offset Failure protection. A wired connection is recommended for longer programming events.
● The MDI 2 is powered from the vehicle battery via the DLC Cable. It may also be powered over USB to perform firmware updates only using a PC.
● Uses USB 2.0 for faster firmware downloads instead of a separate AC power supply.
● The DLC cable is twice as long as the previous cable and connects at the top, making it easier to use. The cable only connects to the MDI 2.
GM MDI 2 Functions List
* Automatic vehicle recognition
* DTC reading and removal
* Complete list of live data streaming for all main ECU
* Recordable / playback of live data
* New software flash for existing ECU to fix drivability issues
* Programming and installation of new ECU (PCM, ABS, Instrument cluster, air bag, fuel pumps etc.,)
* Programming new keys
* Setting / removing speed limiters
* J2534 pass thru offering ECU re-flash and diagnostics for other vehicle manufacturers, when subscribed to their specified software
* More dealer specific functions

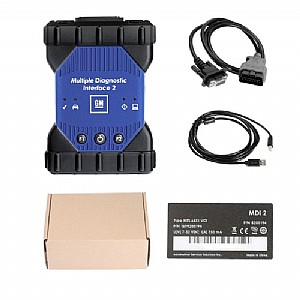

GM MDI 2 Package List:
1pc x GM MDI device
1pc x DLC Cable SAE J1962
1pc x 10-ft. USB A to USB B Cable
1pc x Ethernet Cable
